DT-370-MOMS-5 - Compact, Hydraulic In Line Check Valves - DT Series

Name: DT-370-MOMS-5 - Compact, Hydraulic In Line Check Valves - DT Series
SKU: DT-370-MOMS-5
Price: 54.00 USD
Availability: InStock

Parker's in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Manufacturer: Parker

Availability:

22 in stock

TOPEKA, KS

Partner Available:

23 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU DT-370-MOMS-5

$54.00/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure (psi)	5000
Cracking Pressure (psi)	5	Inlet Port Size (inch)	9/16 - 18 UNF
Outlet Port Size (inch)	5000	Inlet Port Connection Type	Male SAE O-ring Straight Thread
Outlet Port Connection Type	Male Seal-Lok	Flow Direction	N/A
Connection Size	9/16 - 18 UNF	Configuration	N/A
Dimensional Weight	0.015995203836930455 lb	Seat Type	Metal seal
Minimum Operating Temperature	-40 °F	Mounting Type	Threaded
Maximum Operating Pressure	5000 psi	Body Material	Steel
Actuation Type	Mechanical	Seal Material	Metal & Elastomeric
Body Size	3/8 inch	Maximum Operating Temperature	250 °F
Division	Quick Coupling Division	Connection Type	Male ORB to Male Seal-Lok ORFS
Maximum Flow Rate	N/A

Customers who bought this item also bought

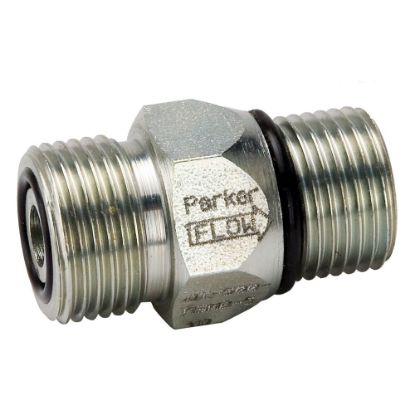

DT-370-MSMO-5 - Compact, Hydraulic In Line Check Valves - DT Series
