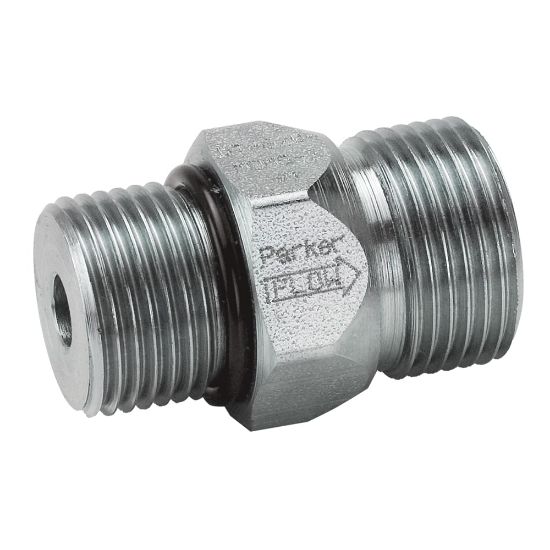

DT-1250-MOMS-5 - Compact, Hydraulic In Line Check Valves - DT Series

Name: DT-1250-MOMS-5 - Compact, Hydraulic In Line Check Valves - DT Series
SKU: DT-1250-MOMS-5
Price: 167.34 USD
Availability: LimitedAvailability

Parker's in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Manufacturer: Parker

Availability:

1 Limited Stock

Wichita, KS

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU DT-1250-MOMS-5

$167.34/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Inlet Port Size (inch)	1 5/8 - 12 UN
Cracking Pressure (psi)	5	Inlet Port Connection Type	Male SAE O-ring Straight Thread
Outlet Port Connection Type	Male Seal-Lok	Outlet Port Size (inch)	1 11/16 - 12 UN
Maximum Working Pressure (psi)	4000	Configuration	N/A
Maximum Operating Pressure	4000 psi	Body Material	Steel
Actuation Type	Mechanical	Dimensional Weight	0.22945143884892086 lb
Seat Type	Metal seal	Maximum Flow Rate	N/A
Connection Type	Male ORB to Male Seal-Lok ORFS	Division	Quick Coupling Division
Connection Size	1- 11/16 - 12 UN	Flow Direction	N/A
Seal Material	Metal & Elastomeric	Maximum Operating Temperature	250 °F
Body Size	1 1/4 inch	Minimum Operating Temperature	-40 °F
Mounting Type	Threaded
