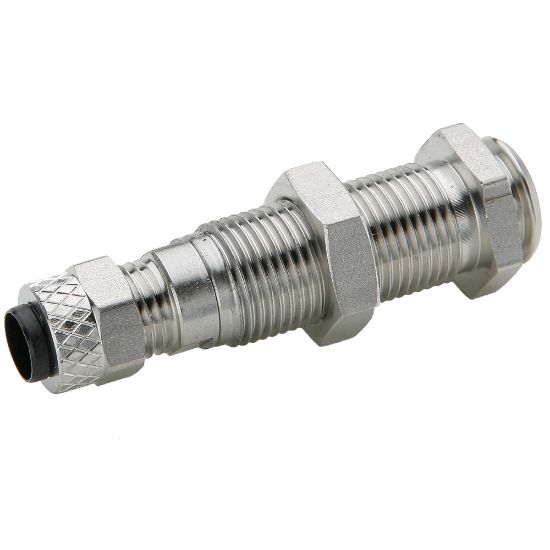

392PSS-4-4 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU 392PSS-4-4

$474.50/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	316 Stainless Steel
Connection 2 Thread Size (inch)	na	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	1/4
Shape	Bulkhead Body	Style	Tube to Plug-in stem
Connection 2 Style	Plug-in Stem	Connection 2 Insert Diameter (inch)	1/4
Maximum Operating Temperature	150 °F	Division	Fluid System Connectors Division
O-Ring Material	Fluorocarbon	Maximum Operating Pressure	10 bar
Nut Material	316 Stainless Steel	Body Material	Stainless Steel
Minimum Operating Temperature	-17 °C	Application	Dental, Packaging, Laboratory, Car wash
Dimensional Weight	2.7594424460431655 lb	Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl
Sleeve Material	Acetal Copolymer
