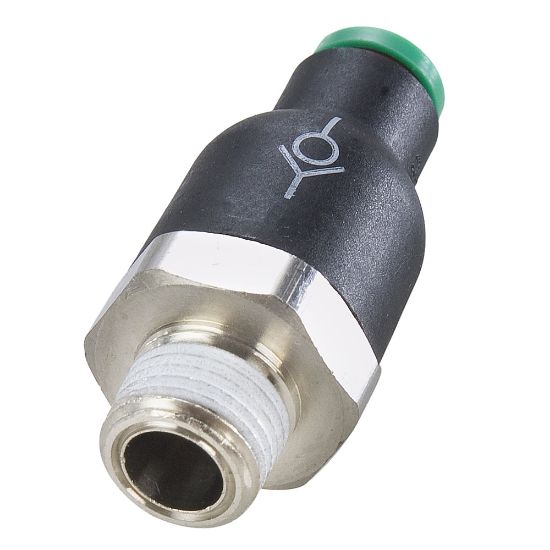

68PLCKI-6M-2G - Check Valves

Parker's check valves allow compressed air to flow in one direction and prevent it from flowing in the other. Fitted upstream of the circuit to be protected, they provide total protection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 68PLCKI-6M-2G

$29.81/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Thread Size	N/A
Connection 1 Tube Outside Diameter	6 mm	Body Material	Nylon
Shape	Threaded	Maximum Operating Pressure	10 bar
Connection Type	BSPP	Maximum Operating Temperature	150 °F
Connection 2 Size	BSPP	Division	Fluid System Connectors Division
Connection 2 Thread Size	1/8 mm	Gripping Ring Material	Stainless Steel
Connection 2 Tube Outside Diameter	N/A	Seal Material	Nitrile
Thread Material	Plated Brass	Cracking Pressure	7 psi
Valve Configuration	One Way	Media	Compressed Air
Connection 1 Size	Push-to-Connect	Product Style	Tube to Pipe
Minimum Operating Temperature	34 °F	Application	Pneumatics, Robotics, Textile, Semi-conductors, Packaging
