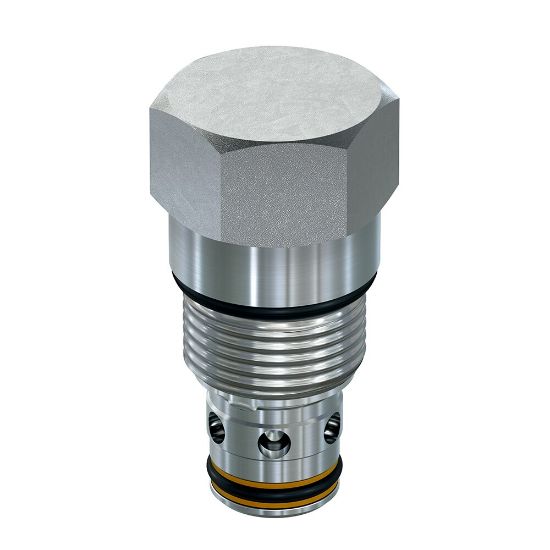

D04F2-2.5-245N - Check Valve with Thermal Relief

Parker’s poppet style check valve with thermal relief allow flows up to 130 lpm (40 gpm) and pressure to 420 bar (6,000 psi), with thermal relieving in the reverse direction to protect the circuit from high hydraulic fluid thermal expansion pressures.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU D04F2-2.5-245N

$205.86/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Cracking Pressure	36 PSI, 2.5 BAR	Flow Rate	40 GAL/MIN, 130 L/MIN
Pressure Relief Setting	3553 PSI, 245 BAR	Cavity Size	C10-2
Minimum Operating Temperature	-34 °C	Mounting Type	Screw-in Cartridge
Flow Rate	40 Gal/min	Operating Temperature	-30 to 250 °F
Actuation Type	Pressure Sensing	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13	Configuration	Poppet Type
Maximum Operating Pressure	6000 psi	Division	Mobile Hydraulic Systems Division Europe
Body Material	N/A	Installation Torque	37 lb-ft
Pressure Relief Setting	3553 psi	Weight	0.13 kg
Operation Type	Check Valve W/Relief Feature	Connection Type	n/a
For Fluid Type	Synthetic Hydraulic Fluids	Maximum Operating Temperature	250 °F
Valve Material	Steel (all parts)	Leak Rate	3 drops/min @ Crack Pressure
Seal Material	Nitrile	Maximum Flow Rate	130 L/min
Connection Size	n/a	Function	Thermal Relief
Maximum Inlet Pressure Rating	420 bar	Flow Direction	Bi-directional
Cracking Pressure	36 psi
