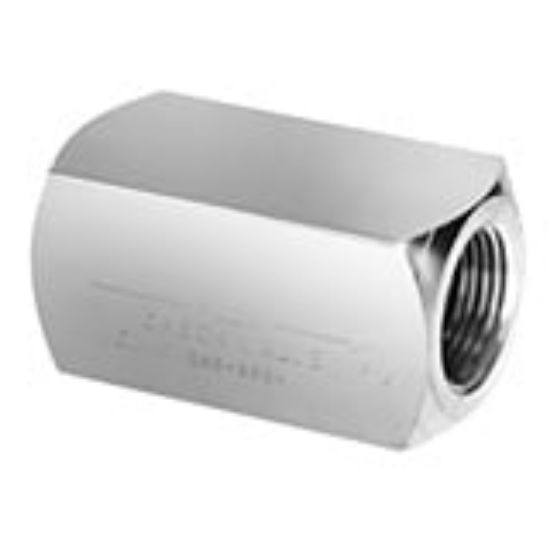

00339G3001 - Check Valve - 339 Series (female to female)

339 series Check valves allow free flow in one direction and provide positive checked flow in the reverse direction. These valves are available with NPTF ports and are recommended for pneumatic service. Available in female to female connection only.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU 00339G3001

$58.57/each

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size (inch)	1/4
Port Type	BSPP	Body Material	Brass
Flow Coefficient	0.66 to 6.0 Cv (free flow)	Division	Pneumatic Division
Lubricant	None	Options	Extended Temperature Version
Seal Material	Urethane	Port Size	1/8
Product Type	One Way Check Valve	Media	Air
Operating Pressure	0 to 250	Needle Material	Brass
Mounting Type	Inline	Flow Rate	35 to 323 SCFM (free flow)
Operating Temperature	-18 to 82	Port Type	NPT
