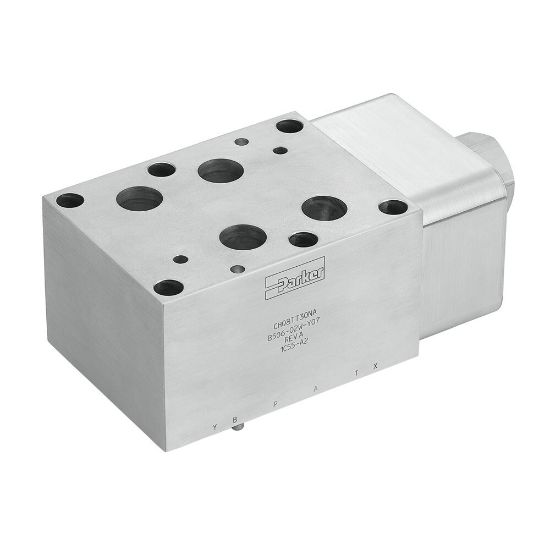

CH05PP30NA - Check Sandwich Valve – CH Series

Parker’s CH series check valves provide free flow in one direction and blocked flow in the reverse direction.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 194 days
Partner Available:	Backordered

SKU CH05PP30NA

$668.64/each

Products specifications

Attribute name	Attribute value
UOM	EA	Size	NFPA D05; CETOP 5; NG10
Valve Body Material	Aluminum	Port Connection	P Port Blocked
Division	Hydraulic Valve Systems Division	Maximum Operating Temperature	200 °F
Seal Material	Nitrile	Maximum Flow Rate	151 L/min
Allowable Circuit Leakage	< 1 drops/min	Media	Oil
Mounting Type	Subplate	Minimum Operating Temperature	-40 °F
Product Style	Check Valve	Body Material	Aluminum
Actuation Type	Hydraulic Pressure	Weight	1.9 lb
Maximum Operating Pressure	3000 psi
