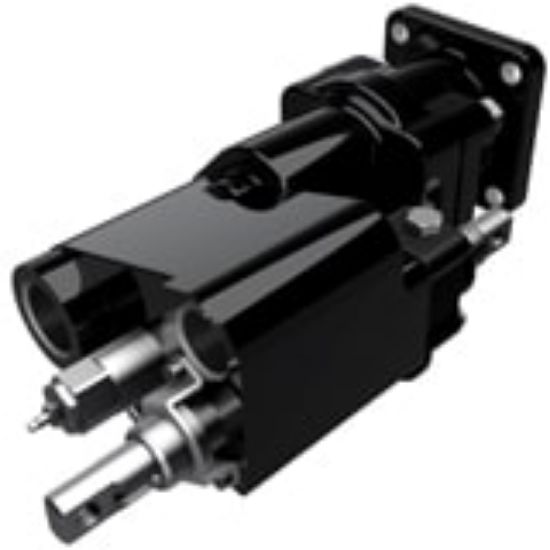

3189112002 - Cast Iron Pumps – SG102 Series

The SG102 is a mid-size dump pump with a large C series dump valve that provides increased dump cycle time compared to a traditional G series dump pump.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 194 days
Partner Available:	Backordered

SKU 3189112002

$1,216.06/each

Products specifications

Attribute name	Attribute value
UOM	EA	Rotation	CCW
Configuration	4 BOLT SQUARE, SAE B / ANSI 101-4	Mounting Option	Direct Mount w/ Air Shift Installed
Division	Pump & Motor Division	Mounting Option	SAE
Media	n/a	Flow Rate	n/a
Maximum Flow Rate	n/a	Maximum Operating Pressure	2500 psi
Body Material	Cast Iron	Weight	25.2 kg (Max)
Port Connection	NPT	Operating Pressure	up to 2500 psi
Control Method	n/a	Filter Included	No
Configuration	Single	For Fluid Type	Standard Hydraulic Fluids
Maximum Fluid Temperature	80 °C	Minimum Fluid Temperature	-20 °C
Drain Option	No	Displacement	up to 80.8 cm3/rev
Maximum Operating Speed	2400 RPM	Maximum Kinematic Viscosity	7500 SUS
Radial Load Capacity	n/a	Pump Type	Gear
Circuit Path	Open	Maximum Noise Level	n/a
Charge Pump Included	No	Maximum Displacement	80.8 cm3/rev
Energy Recovery Capability	No	Minimum Kinematic Viscosity	50 SUS
