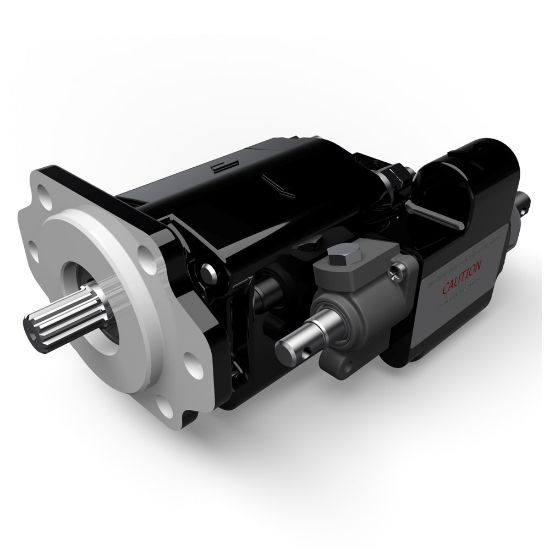

3089310047 - Cast Iron Pumps – G101/G102 Series

Parker’s G101/G102 series dump pumps provide the most reliable, trouble free performance in the industry for dump truck and trailer applications. Operating pressures up to 172 bar (2,500 psi), speeds up to 2,400 rpm, flows up to 16.9 gpm.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	21 in stock

SKU 3089310047

$1,322.91/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Rotation	BI
Configuration	4 BOLT SQUARE, SAE B / ANSI 101-4	Additional Options	No Air Shift
Energy Recovery Capability	No	Maximum Fluid Temperature	180 °F
Inlet Connection Size	NPT	Maximum Kinematic Viscosity	7500 SUS
Port Connection	NPT	Port Type	Tapered Thread
Pump Type	Fixed	Flow Rate	n/a
Direction of Rotation	Clockwise	Operating Pressure	up to 172 bar
Outlet Connection Size	NPT 3/4 inch (Tank-plugged)	Displacement	up to 3.9 inch3/rev
Media	n/a	Product Type	G101
Charge Pump Included	No	Filter Included	No
Port Location	Rear Ports	Maximum Operating Speed	2400 RPM
Division	Pump & Motor Division	Circuit Path	Open
Radial Load Capacity	n/a	For Fluid Type	Phosphate-ester
Seal Material	TEFLON	Maximum Flow Rate	n/a
Control Method	n/a	Thru-Drive Capability	No
Maximum Noise Level	n/a	Configuration	Single
Minimum Fluid Temperature	-20 °C	Weight	20.4 kg (Max)
Shaft Diameter	1 inch	Maximum Operating Pressure	2500 psi
Body Material	Cast Iron (Grey)	Drain Option	No
Maximum Displacement	64 cm3/rev	Mounting Option	DIN
Shaft Type	SAE	Minimum Kinematic Viscosity	50 SUS
Sensor Type	n/a
