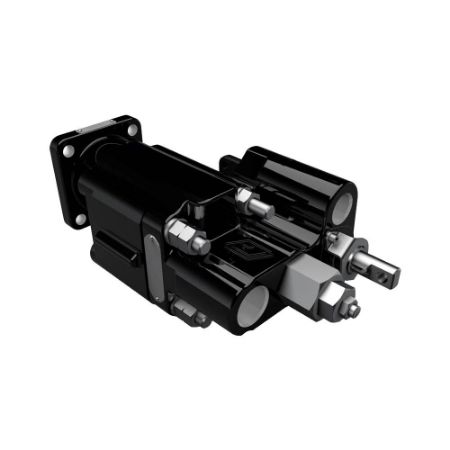

Cast Iron Pumps – C101/C102 Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s C101/C102 fixed displacement gear pumps offer high performance and high endurance due to its cast iron construction, making it an ideal selection for the Vocational & Municipal Equipment market. It is available as a standard pump with integrated valve for raising and lower dump beds, with integral relief valve.

Markets:
• Vocational & Municipal Equipment

Features/Benefits:
• Three-piece cast iron construction for distribution flexibility
• Durable high-strength cast iron body for excellent power to weight ratio
• Cast Iron construction for durability
• Balanced Thrust Plates minimize friction and leakage
• Roller bearings for durability

Applications:
• Dump Truck
• Dump Trailer

Technical Specifications:
• Flow is 27.7 gpm (104.9 lpm)
• Displacement is 6.4 cir (104.9cc/rev)
• Operating pressures up to 172 bar (2,500 psi)
• Speeds up to 2,400 rpm
• Volumetric efficiencies up to 94%
• CW, CCW, and Bi-rotational pumps available
• SAE shafts, flanges and porting
• Integrated relief valve and load hold valve
• Integrated raise/neutral/lower valve
• Air shift valve available

View as Grid List

Sort by

Display per page

Action	SKU	Availability	Partner Available	Price	UOM	Rotation	Additional Options	Displacement	Configuration	Pressure Rating (psi)	Division	Product Type	Mounting Option	Media	Flow Rate	Port Type	Maximum Flow Rate	Maximum Operating Pressure	Body Material	Seal Material	Weight	Port Connection	Operating Pressure	Control Method	Additional Options	Inlet Connection Size	Filter Included	Sensor Type	Configuration	For Fluid Type	Maximum Fluid Temperature	Minimum Fluid Temperature	Drain Option	Shaft Type	Displacement	Direction of Rotation	Maximum Operating Speed	Maximum Kinematic Viscosity	Outlet Connection Size	Radial Load Capacity	Pump Type	Circuit Path	Port Location	Shaft Diameter	Maximum Noise Level	Charge Pump Included	Maximum Displacement	Thru-Drive Capability	Energy Recovery Capability	Minimum Kinematic Viscosity
	3149310226	Backordered	19 in stock	$1,508.39/each	EA	BI	No Air Shift	6.38 cu. in. / 104.5 cc	4-BOLT SQUARE	2500 PSI	Pump & Motor Division	Hydraulic Pump Gear, Fixed Displacement	DIN	n/a	n/a	Tapered Thread	n/a	172 bar	Cast Iron	TEFLON	32 kg (Max)	NPT	up to 2500 psi	n/a	n/a	NPT	No	n/a	Single	Standard Hydraulic Fluids	80 °C	0 °F	No	SAE	up to 105 cm3/rev	Clockwise	2400 RPM	7500 SUS	NPT 1 inch (Cylinder)	n/a	Fixed	Open	Rear Ports	1 inch	n/a	No	6.4 inch3/rev	No	No	50 SUS
	3149325229	Backordered	32 in stock	$1,508.39/each	EA	CCW	No Air Shift	6.38 cu. in. / 104.5 cc	4-BOLT SQUARE	2500 PSI	Pump & Motor Division	Hydraulic Pump Gear, Fixed Displacement	SAE	n/a	n/a	Tapered Thread	n/a	172 bar	Cast Iron	TEFLON	32 kg (Max)	NPT	up to 172 bar	n/a	n/a	1-1/4 inch	No	n/a	Single	Standard Hydraulic Fluids	180 °F	-20 °C	No	SAE	up to 6.4 inch3/rev	Clockwise	2400 RPM	7500 SUS	NPT 1 inch (Cylinder)	n/a	Gear	Open	Rear Ports	7/8 inch	n/a	No	6.4 inch3/rev	No	No	50 SUS
