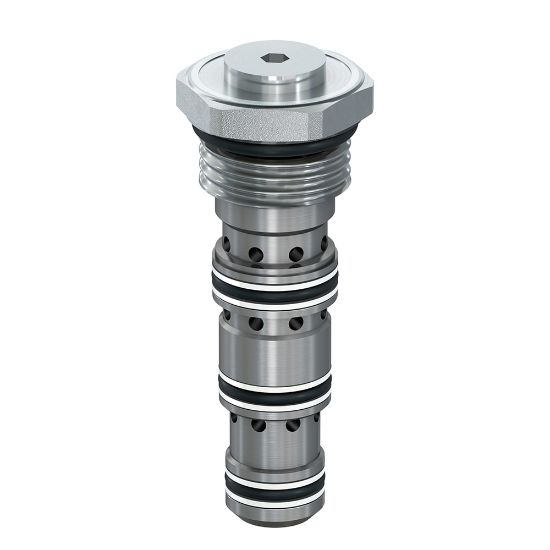

CPD084P - Cartridge Style Dual Pilot Operated Check Valves

Designed to lock hydraulic circuits or actuators in rest conditions, Parker’s dual pilot operated check valves allow bidirectional flow ranging up to 19 lpm (5 gpm) and pressure up to 207 bar (3,000 psi) after pilot pressure is supplied.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	111 in stock

SKU CPD084P

$109.71/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	5 GAL/MIN, 19 L/MIN	Mounting Type	Screw-in Cartridge
Flow Rate	5 Gal/min	Operating Temperature	-34 to 121 °C
Configuration	Cartridge Style	Actuation Type	Pilot
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Operating Pressure	207 bar	Installation Torque	15 lb-ft
Body Material	n/a	Weight	0.05 kg
Connection Type	n/a	Pilot Pressure Ratio	3:1
Division	Hydraulic Systems Division	Operation Type	Pilot Operated
Maximum Flow Rate	19 Gal/min	Maximum Operating Temperature	121 °C
Leak Rate	5	For Fluid Type	Mineral-based Hydraulic Fluids
Seal Material	Nitrile	Valve Material	Steel
Maximum Inlet Pressure Rating	3000 psi	Connection Size	n/a
Function	Dual Pilot Operated	Cracking Pressure	n/a
Flow Direction	2-1 Free Flow	Minimum Operating Temperature	-30 °F
Cavity Size	C08-4
