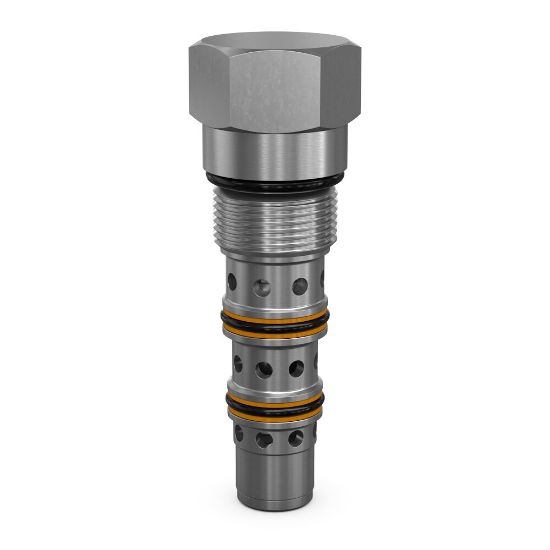

K04C3-10.0N - Cartridge Spool Type Shuttle Valves with All Ports Closed

REGIONAL - Parker's 3-position, 3-way spool type closed center shuttle valves are available in two cavity sizes and provide high performance pilot control; capable of flows up to 175 lpm (46 gpm) and 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	5 in stock

SKU K04C3-10.0N

$195.83/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	26 GAL/MIN, 100 L/MIN	Switching Pressure	145 PSI, 10 BAR
Flow Rate	26 Gal/min	Cavity Size	C10-4
Minimum Operating Temperature	-34 °C	Switching Pressure	145 psi
Installation Torque	37 lb-ft	Weight	0.17 kg
Maximum Operating Pressure	420 bar	Body Material	N/A
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Configuration	3-way Spool Type
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Pressure Sensing
Operating Temperature	-30 to +250 °F	Maximum Flow Rate	100 L/min
Leak Rate	100 @ 1450 PSI (100 BAR) cm3/min	Maximum Operating Temperature	+250 °F
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Spring Centered, All Parts Closed
Standard Flow Rate Setting	55 L/min	Division	Mobile Hydraulic Systems Division Europe
Function	Shuttle	Seal Material	Nitrile
Valve Material	All parts steel. All operating parts hardened steel	Maximum Inlet Pressure Rating	6000 psi
