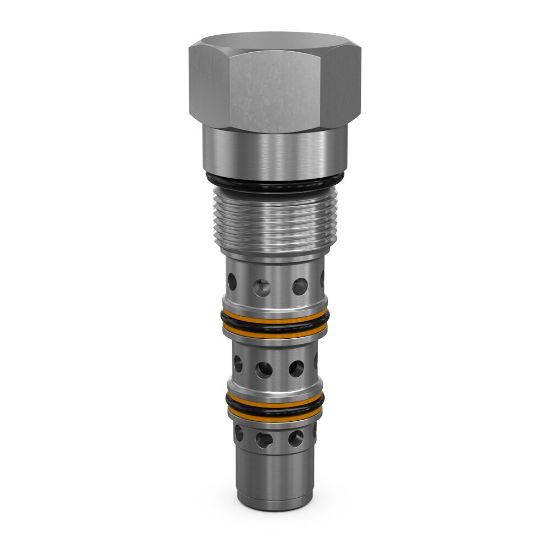

K04C3-0.0N - Cartridge Spool Type Shuttle Valves with All Ports Closed

REGIONAL - Parker's 3-position, 3-way spool type closed center shuttle valves are available in two cavity sizes and provide high performance pilot control; capable of flows up to 175 lpm (46 gpm) and 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 290 days
Partner Available:	Backordered

SKU K04C3-0.0N

$260.15/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	26 GAL/MIN, 100 L/MIN	Switching Pressure	0 PSI, 0 BAR
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Pressure Sensing
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-30 to +250 °F
Maximum Operating Pressure	420 bar	Configuration	3-way Spool Type
Flow Rate	100 L/min	Standard Flow Rate Setting	15 Gal/min
Body Material	N/A	Operation Type	Spring Centered, All Parts Closed
Weight	0.37 lb	Division	Mobile Hydraulic Systems Division Europe
Installation Torque	50 Nm	Maximum Inlet Pressure Rating	6000 psi
Function	Shuttle	Seal Material	Nitrile
Leak Rate	100 @ 1450 PSI (100 BAR) cm3/min	Maximum Operating Temperature	+121 °C
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Flow Rate	26 Gal/min
Valve Material	All parts steel. All operating parts hardened steel	Switching Pressure	0 psi
Cavity Size	C10-4	Minimum Operating Temperature	-30 °F
