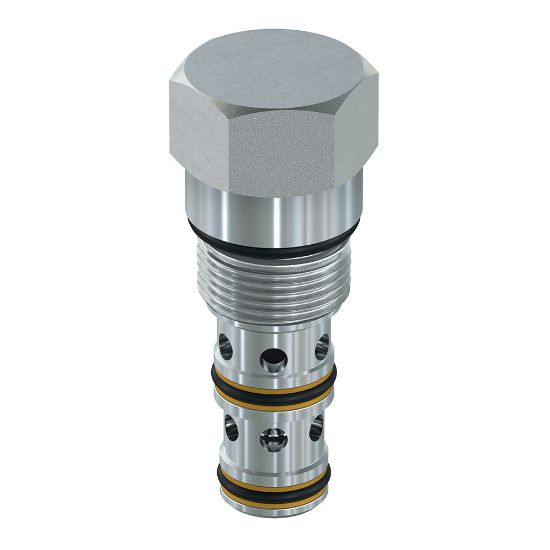

K04B3-5.0N - Cartridge Spool Type Shuttle Valve with Spring Offset

REGIONAL - Parker's 2-position, 3-way spool type shuttle valve with spring offset are spring biased into its normal position and are capable of flows up to 90 lpm (24 gpm) and 420 bar (6000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 185 days
Partner Available:	Backordered

SKU K04B3-5.0N

$230.77/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	25 GAL/MIN, 90 L/MIN	Switching Pressure	73 PSI, 5 BAR
Division	Mobile Hydraulic Systems Division Europe	Installation Torque	50 Nm
Operation Type	Spring Offset	Actuation Type	Pressure Sensing
Body Material	N/A	Configuration	3-way Spool Type
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Weight	0.14 kg
Maximum Operating Pressure	6000 psi	Maximum Operating Temperature	+250 °F
Valve Material	All parts steel. All operating parts hardened steel	Seal Material	Nitrile
Leak Rate	55 @ 1450 PSI (100 BAR) cm3/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Flow Rate	24 Gal/min	Standard Flow Rate Setting	13 Gal/min
Function	Shuttle	Maximum Inlet Pressure Rating	420 bar
Operating Temperature	-34 to +121 °C	Flow Rate	90 L/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Cavity Size	C10-3
Minimum Operating Temperature	-34 °C	Switching Pressure	73 psi
