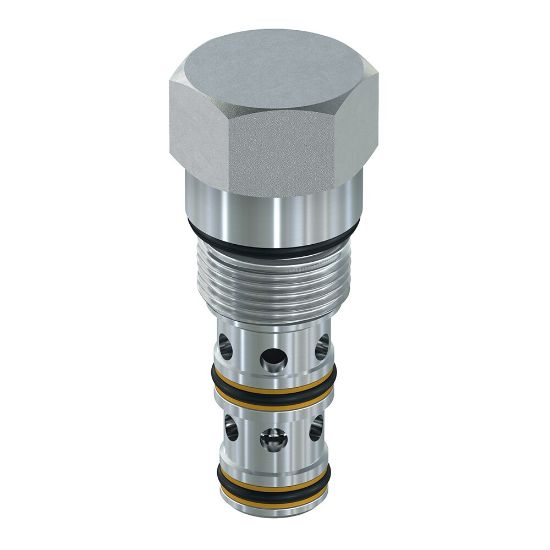

K04D3N - Cartridge Spool Type Shuttle Valve

REGIONAL - Parker's 2-position, 3-way spool type shuttle valves will fit industry common cavities while providing superior performance; capable of flows up to 90 lpm (24 gpm) and 420 bar (6000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 185 days
Partner Available:	Backordered

SKU K04D3N

$202.10/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	24 GAL/MIN, 90 L/MIN	Division	Mobile Hydraulic Systems Division Europe
Operation Type	Automatic	Standard Flow Rate Setting	13 Gal/min
Maximum Operating Pressure	6000 psi	Installation Torque	50 Nm
Body Material	N/A	Weight	0.14 kg
Seal Material	Nitrile	Valve Material	All parts steel. All operating parts hardened steel
Maximum Inlet Pressure Rating	420 bar	Maximum Flow Rate	90 L/min
Leak Rate	55 @ 1450 PSI (100 BAR) cm3/min	Maximum Operating Temperature	+121 °C
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Cavity Size	C10-3
Minimum Operating Temperature	-34 °C	Function	Shuttle
Operating Temperature	-34 to +121 °C	Configuration	3-way Spool Type
Actuation Type	Pressure Sensing	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Flow Rate	24 Gal/min
