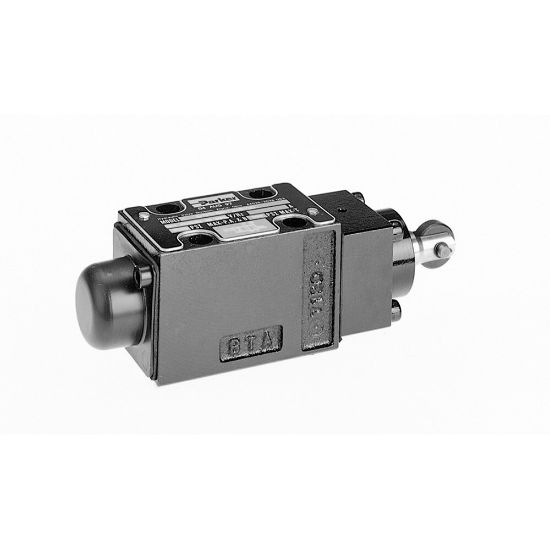

D1VC001BNP05 - Cam Operated Directional Control Valve - D1VC, D1VD, D1VG Series

Parker’s D1VC, D1VD and D1VG directional control valves are high performance, 4-chamber, direct operated, cam controlled, 4-way valves.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU D1VC001BNP05

$709.60/each

Products specifications

Attribute name	Attribute value
UOM	EA	Size	NFPA3; CETOP 3; NG7
Maximum Operating Pressure	3000 PSI	Mounting Type	Subplate
Actuation Type	Cam (90° to mounting surface)	Maximum Flow Rate	22 GPM
Mounting Type	Manifold	Spool Code	3-Position
Actuation Type	Cam (90° to mounting surface)	Maximum Operating Pressure	5000 psi
Body Material	Steel	Weight	1.44 kg
Valve Type	Industrial Cam Operated Directional Control Valve	Maximum Operating Temperature	140 °F
Size	NG6	Division	Hydraulic Valve Systems Division
Seal Material	Nitrile	Spool Position	Spring Offset Operator at "A" port end
Maximum Flow Rate	22.0 Gal/min
