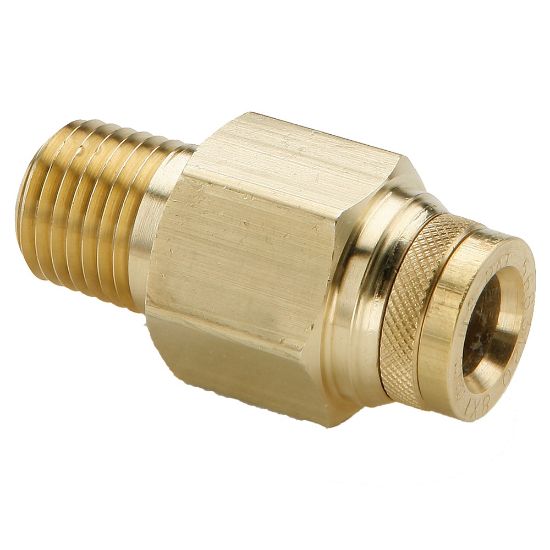

F2PMTB8-1/8 - Brass Prestomatic Push to Connect DOT Fittings

Parker's Metric Prestomatic brass fittings meet SAE and DOT specifications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	1 Limited Stock

SKU F2PMTB8-1/8

$60.06/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Connector
Connection 1 Size	8 mm	Connection 1 Type	Push-to-Connect
Product Style	Tube to Pipe	Connection 2 Size	1/8 inch
Connection 2 Type	Male Pipe Thread	Connection 3 Size	N/A
Connection 3 Type	N/A	Connection 1 Size	8 mm Tube O.D.
Connection 2 Type	Pipe	Minimum Operating Temperature	-40 °F
Brand	Parker	Specifications Met	DIN 74324
Seal Material	Buna N (O-Ring)	Connection 2 Size	1/8 inch
Maximum Operating Temperature	200 °F	Tube Material	Stainless Steel
Technology	Fluid & Gas Handling	Connection 3 Size	n/a
Shape	Connector	Division	Fluid System Connectors Division
Division	Fluid System Connectors Division	Configuration	Tube to Pipe
Materials of Construction	Brass (Collet)	Application	Air Brake Systems
Maximum Operating Pressure	250 psi	Body Material	Brass
Connection 1 Type	Push-to-Connect
