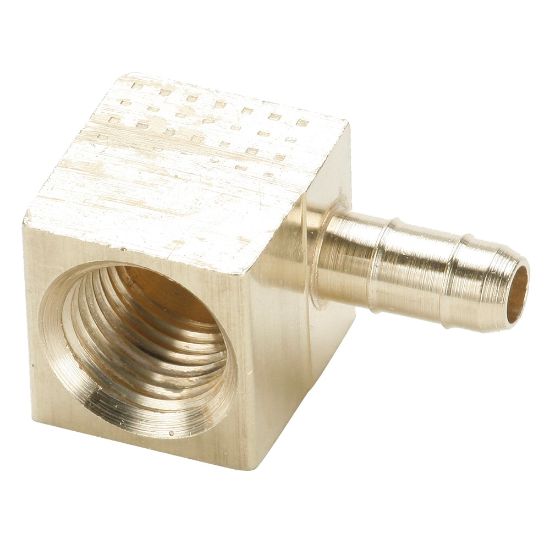

Parker 230-4-2 90° Elbow Brass Pneumatic Hose Barbs For Tubing, Dubl-Barb

Name: Parker 230-4-2 90° Elbow Brass Pneumatic Hose Barbs For Tubing, Dubl-Barb
SKU: 230-4-2
Price: 5.40 USD
Availability: InStock

Parker's Dubl-barb push-on hose barb is a compact one piece fitting for a quick, economical way to connect polyethylene tubing.

Manufacturer: Parker

Availability:

7 in stock

Kansas City, KS

Partner Available:

70 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 230-4-2

$5.40/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Style	na
Connection 3 Thread Size (inch)	na	Shape	90° Elbow
Connection 2 Thread Size (inch)	1/8	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Barb	Connection 1 Tube O.D. (inch)	1/4
Connection 2 Style	Female Pipe	Style	Tube to Female Pipe
Division	Fluid System Connectors Division	Maximum Operating Pressure	10 bar
Maximum Operating Temperature	32 °C	Minimum Operating Temperature	-65 °F
Body Material	Brass	Tube Material	Polyethylene
Dimensional Weight	0.027594424460431654 lb
