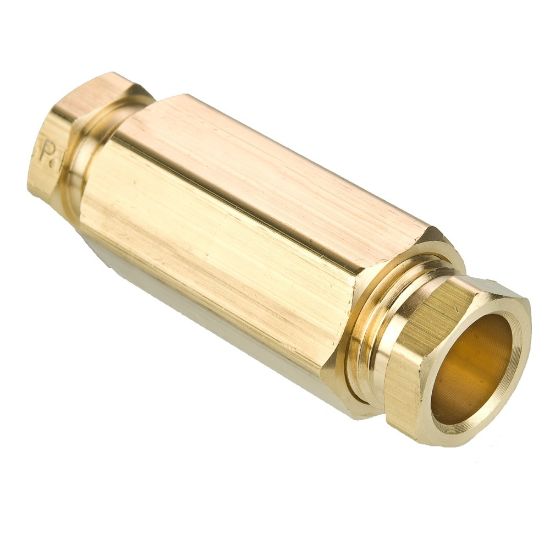

62HD-2 - Brass flareless tube fitting, Hi-Duty

Parker's Hi-Duty fitting is a preassembled brass fitting fitting with a sleeve machined onto the nut. This unique design creates tight joints that withstand pressures of most commomly used types of tubing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 31 days
Partner Available:	Backordered

SKU 62HD-2

$38.63/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	na
Connection 1 Tube O.D. (inch)	1/8	Connection 1 Style	Compression
Connection 2 Style	Compression	Style	Tube to Tube
Connection 2 Tube O.D. (inch)	1/8	Shape	Union
Division	Fluid System Connectors Division	Maximum Operating Temperature	250 °F
Sleeve Material	Brass	Tube Material	Tube Assemblies, Engine, Compressors
Minimum Operating Temperature	-54 °C	Application	Tube Assemblies, Engine, Compressors
Body Material	Brass	Maximum Operating Pressure	4300 psi
Nut Material	Brass
