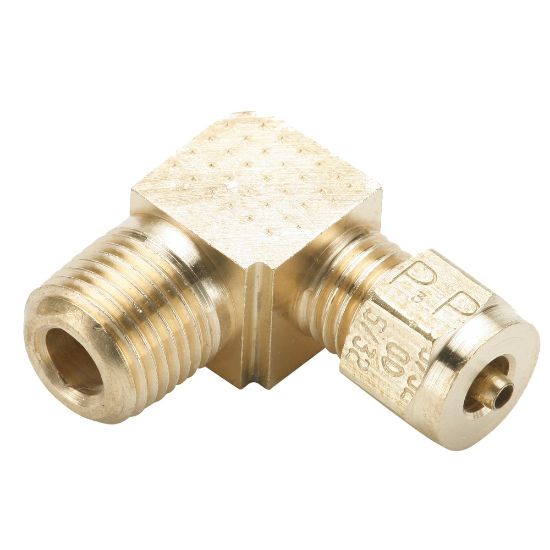

269TF-5/32-2 - Brass Compression-Style Transmission Fittings

Parker's Transmission fittings are designed to eliminate notch stress related to over-torque and are ideal for pressure protected pneumatic transmission applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 31 days
Partner Available:	34 in stock

SKU 269TF-5/32-2

$20.95/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	90° Elbow
Connection 1 Type	Compression	Product Style	Tube to Pipe
Connection 2 Size	1/8 inch	Connection 1 Size	5/32 inch
Connection 2 Type	Male Pipe Thread	Division	Fluid System Connectors Division
Maximum Operating Temperature	220 °F	Maximum Operating Pressure	10 bar
O-Ring Material	Nitrile	Nut Material	Brass
Body Material	Brass	Division	Fluid System Connectors Division
Connection 1 Size	Compression	Minimum Operating Temperature	-40 °C
Brand	Parker	Application	Air Shift Transmission, Seat Controls, Dash Controls
Technology	Fluid & Gas Handling	Connection 2 Tube Outside Diameter	na
Tube Material	SAE J844 Type A & B Nylon Tubing	Media	Compressed Air
Sleeve Material	Brass	Collet Material	Brass
