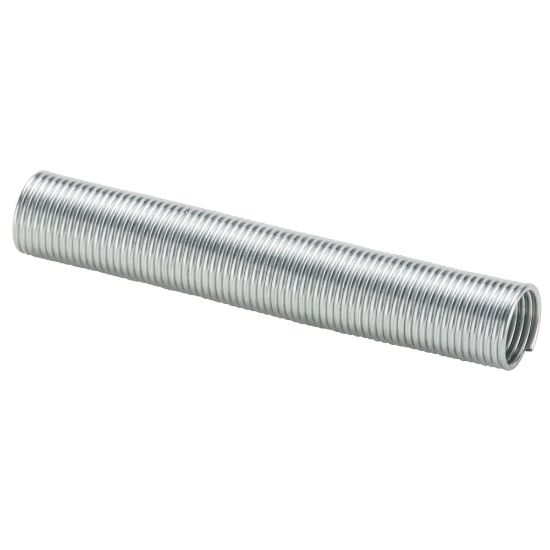

Parker 56PSG-4 Spring Guard Tube Brass Compression Fitting For Thermoplastic And Soft Metal

Parker's Poly-Tite fittings offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 56PSG-4

$4.31/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Style	na
Connection 2 Thread Size (inch)	na	Connection 2 Tube O.D. (inch)	na
Connection 1 Tube O.D. (inch)	1/4	Style	Tube
Connection 1 Style	Tube	Shape	Spring Guard
Minimum Operating Temperature	0 °F	Application	Dental, Packaging, Machine tool, Car wash
Maximum Operating Pressure	150 psi	Nut Material	Brass
Body Material	Brass	Division	Fluid System Connectors Division
Maximum Operating Temperature	150 °F	Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl
Sleeve Material	Brass, Acetal Copolymer
