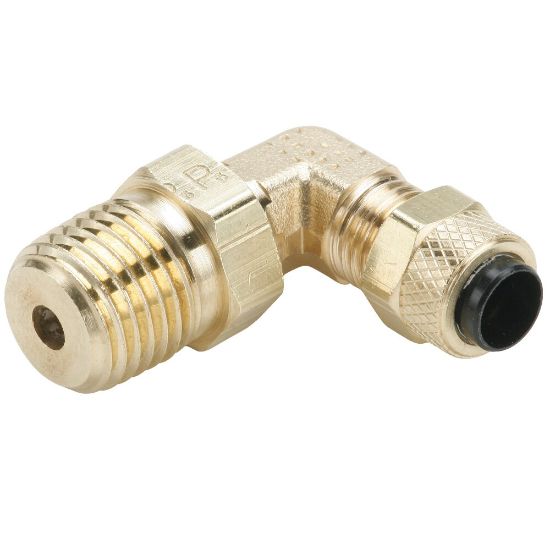

169PS-6-4 - Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.

Parker's Poly-Tite fittings offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 31 days
Partner Available:	Backordered

SKU 169PS-6-4

$43.05/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	3/8
Shape	90° Swivel Elbow	Style	Tube to Pipe
Connection 2 Style	Male Pipe	Connection 2 Thread Size (inch)	1/4
Body Material	Brass	Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl
Division	Fluid System Connectors Division	Maximum Operating Temperature	65 °C
Minimum Operating Temperature	0 °F	Sleeve Material	Brass, Acetal Copolymer
Maximum Operating Pressure	10 bar	Nut Material	Brass
Application	Dental, Packaging, Machine tool, Car wash
