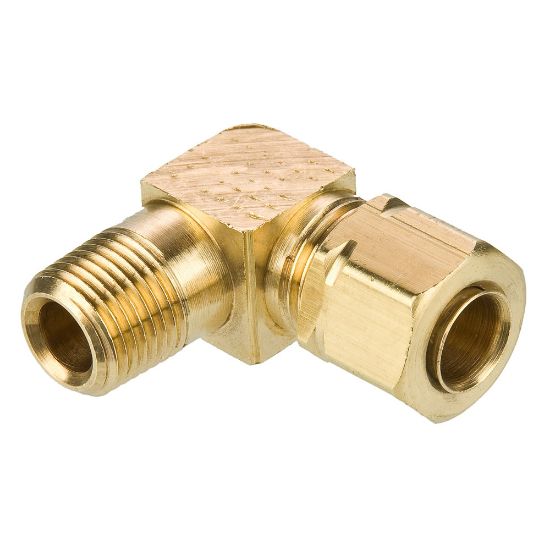

269CA-4-4 - Brass Compression Fittings, Compress-Align

Parker's Compress-Align fittings require no flaring, soldering or other preparation of tubing. The captive sleeve is always oriented for correct installation, visible for inspection before and after installation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 5 days
Partner Available:	504 in stock

SKU 269CA-4-4

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Elbow 90°
Connection 2 Type	Male Pipe	Connection 2 Thread Size	1/4"
Connection 1 Type	Compression	Connection 1 Tube Outside Diameter	1/4" (O.D.)
Configuration	Tube to Pipe	Body Material	Brass, Extruded
Body Material	Brass	Maximum Operating Pressure	193 bar
Application	Purification	Dimensional Weight	0.0552 lb
Materials of Construction	Brass (Sleeve)	Minimum Operating Temperature	-65 °F
Connection Type	NPTF	Division	Fluid System Connectors Division
For Fluid Type	Non-combustible Gases	Maximum Operating Temperature	250 °F
Tube Material	TFE
