*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

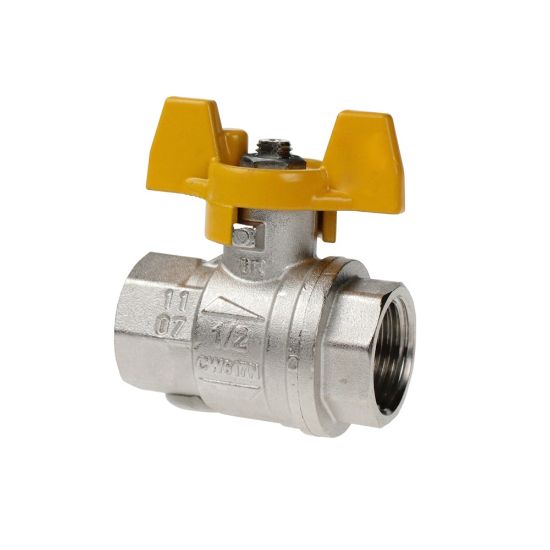

BVGT4-3/8L - Ball Valve Series BVGL & BVGLOCK - Long Female Threads

BVGL & BVGLOCK series ball valves feature a nickel plated brass body and a chrome plated brass ball and are manufactured with long female threads.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 64 days
Partner Available:	Backordered

SKU BVGT4-3/8L

$90.65/each

Products specifications

Attribute name	Attribute value
UOM	EA	Thread Size (Inch)	3/8
Handle	Compact	Flow Diameter (mm)	10
Locking Mechanism	Non-Locking	Thread Size	BSPP
Connection Type	BSPP	Seat Material	PTFE
Maximum Flow Rate	n/a	Seal Material	PTFE
Maximum Operating Temperature	170 °C	Division	Fluid System Connectors Division
Maximum Operating Pressure	40 bar	Vented	No
Actuation Type	Manual	Configuration	Female to Female
Handle Type	Compact	Shape	Inline
Body Material	Nickel-Plated Brass	Operation Type	On/Off
Minimum Operating Temperature	-40 °F	Mounting Type	Inline
Orifice Size	10 mm	Ball Material	Chrome-Plated Brass
Function	Ball Valve	Product Type	Ball Valve
Connection Size	Varies
