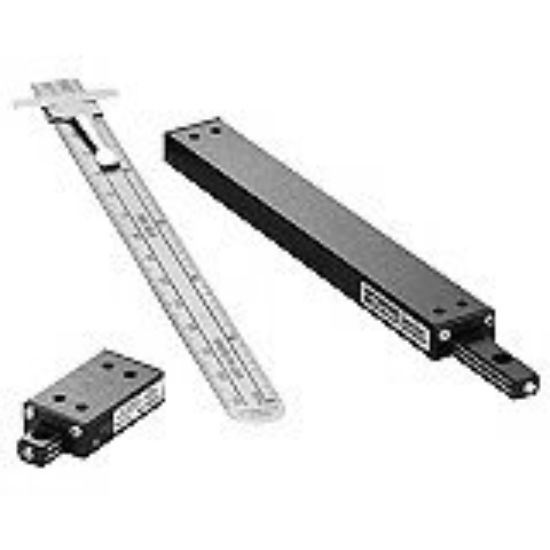

M3905 - Ball Bearing Guided, Miniature Manual Linear Slides - 3000 Series

The 3000-series of miniature ball-bearing guided manual linear slides offer travels of up to 4", payloads up to 56 lbs, plus exceptional smoothness, extremely low friction and a very good straightness and flatness accuracy.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU M3905

Products specifications

Attribute name	Attribute value
UOM	EA	Width (inch)	1.25
Travel (inch)	0.5	Type	Metric Model
Payload (lbs)	6	Product Series	3000 Series
Mounting Option	Metric Model	Load Capacity	6 lb
Maximum Travel	12.7 mm	Division	Electronic Motion and Controls Division
Width	31.8 mm	Number of Axes	1
Bearing Type	Ball	Product Type	Linear Slide
