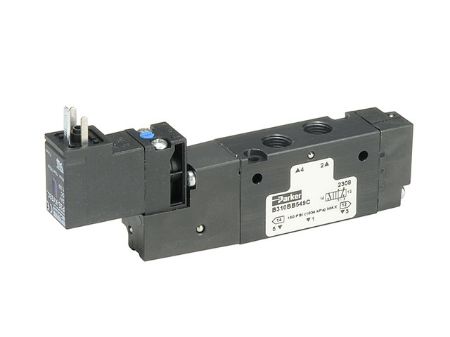

B Series Single Solenoid 4-way 2-position Valve
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
B Series Single Solenoid 4-way 2-position Valve
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Port | Operator Type Detail | Pkg Qty | CV Factor | Pilot Supply | Solenoid Voltage | Override Type | Offset Return Type | Parker Group | Offset Return Type | Operator Type | Port | Supply Pressure Range | Pneumatic Valve Type | Series | Operator Type Detail | Port Inch/BSP | Solenoid Voltage | Parker Division | CV Factor | Valve Passages | Override Type | Operating Temperature | Pilot Supply | Valve Positions | Solenoid Connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B310BB549C | 2 Limited Stock | 26 in stock | $142.47/each | EA | EA | 1/8 NPT | Single | 1 | 0.75 | Internal | 24VDC | Non-locking | Air Return | Automation | Air Return | Solenoid | 1/8 NPT | 20 to 145 PSIG (1.4 to 10 bar) | Inline Valve | B | Single | NPT | 24VDC | Pneumatic | 0.75 | 4-way | Non-locking | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | 15mm 3-Pin DIN 43650C | |
| B310BB553C | Backordered | 88 in stock | $185.21/each | EA | EA | 1/8 NPT | Single | 1 | 0.75 | Internal | 120VAC | Non-locking | Air Return | Automation | Air Return | Solenoid | 1/8 NPT | 20 to 145 PSIG (1.4 to 10 bar) | Inline Valve | B | Single | NPT | 120VAC | Pneumatic | 0.75 | 4-way | Non-locking | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | 15mm 3-Pin DIN 43650C | |
| B511BB549C | 3 in stock | 26 in stock | $166.92/each | EA | EA | 1/4 NPT | Single | 1 | 1.4 | Internal | 24VDC | Non-locking | Air Return | Automation | Air Return | Solenoid | 1/4 NPT | 20 to 145 PSIG (1.4 to 10 bar) | Inline Valve | B | Single | NPT | 24VDC | Pneumatic | 1.4 | 4-way | Non-locking | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | 15mm 3-Pin DIN 43650C | |
| B511BB553C | 4 in stock | 34 in stock | $166.92/each | EA | EA | 1/4 NPT | Single | 1 | 1.4 | Internal | 120VAC | Non-locking | Air Return | Automation | Air Return | Solenoid | 1/4 NPT | 20 to 145 PSIG (1.4 to 10 bar) | Inline Valve | B | Single | NPT | 120VAC | Pneumatic | 1.4 | 4-way | Non-locking | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | 15mm 3-Pin DIN 43650C | |
| B512BB549C | 2 Limited Stock | 25 in stock | $179.06/each | EA | EA | 3/8 NPT | Single | 1 | 1.4 | Internal | 24VDC | Non-locking | Air Return | Automation | Air Return | Solenoid | 3/8 NPT | 20 to 145 PSIG (1.4 to 10 bar) | Inline Valve | B | Single | NPT | 24VDC | Pneumatic | 1.4 | 4-way | Non-locking | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | 15mm 3-Pin DIN 43650C | |
| B512BB553C | 2 Limited Stock | 16 in stock | $179.06/each | EA | EA | 3/8 NPT | Single | 1 | 1.4 | Internal | 120VAC | Non-locking | Air Return | Automation | Air Return | Solenoid | 3/8 NPT | 20 to 145 PSIG (1.4 to 10 bar) | Inline Valve | B | Single | NPT | 120VAC | Pneumatic | 1.4 | 4-way | Non-locking | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | 15mm 3-Pin DIN 43650C | |
| B612ADA53A | Backordered | Backordered | $282.71/each | EA | EA | 3/8 NPT | Single | 1 | 120VAC | Air Return | Automation | Air Return | 3/8 NPT | 20 to 145 PSIG (1.4 to 10 bar) | Inline Valve | NPT | 120VAC | Pneumatic | 4-way | -15°C to 49°C (5°F to 120°F) | 2-position | |||||||||||
| B612BB549A | Backordered | 9 in stock | $298.96/each | EA | EA | 3/8 NPT | Single | 1 | 2.7 | Internal | 24VDC | Non-locking | Air Return | Automation | Air Return | Solenoid | 3/8 NPT | 20 to 145 PSIG (1.4 to 10 bar) | Inline Valve | B | Single | NPT | 24VDC | Pneumatic | 2.7 | 4-way | Non-locking | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | 15mm 3-Pin DIN 43650C | |
| B612BB553A | Backordered | 10 in stock | $298.96/each | EA | EA | 3/8 NPT | Single | 1 | 2.7 | Internal | 120VAC | Non-locking | Air Return | Automation | Air Return | Solenoid | 3/8 NPT | 20 to 145 PSIG (1.4 to 10 bar) | Inline Valve | B | Single | NPT | 120VAC | Pneumatic | 2.7 | 4-way | Non-locking | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | 15mm 3-Pin DIN 43650C | |
| B713BB549A | Backordered | Backordered | $347.94/each | EA | EA | 1/2 NPT | Single | 1 | 5.9 | Internal | 24VDC | Non-locking | Air Return | Automation | Air Return | Solenoid | 1/2 NPT | 35 to 145 PSIG (2.4 to 10 bar) | Inline Valve | B | Single | NPT | 24VDC | Pneumatic | 5.9 | 4-way | Non-locking | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | 15mm 3-Pin DIN 43650C | |
| B713BB553A | Backordered | 5 in stock | $452.32/each | EA | EA | 1/2 NPT | Single | 1 | 5.9 | Internal | 120VAC | Non-locking | Air Return | Automation | Air Return | Solenoid | 1/2 NPT | 35 to 145 PSIG (2.4 to 10 bar) | Inline Valve | B | Single | NPT | 120VAC | Pneumatic | 5.9 | 4-way | Non-locking | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | 15mm 3-Pin DIN 43650C | |
| B814BB549A | Backordered | Backordered | $366.30/each | EA | EA | 3/4 NPT | Single | 1 | 7 | Internal | 24VDC | Non-locking | Air Return | Automation | Air Return | Solenoid | 3/4 NPT | 35 to 145 PSIG (2.4 to 10 bar) | Inline Valve | B | Single | NPT | 24VDC | Pneumatic | 7 | 4-way | Non-locking | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | 15mm 3-Pin DIN 43650C | |
| B814BB553A | Backordered | Backordered | $366.30/each | EA | EA | 3/4 NPT | Single | 1 | 7 | Internal | 120VAC | Non-locking | Air Return | Automation | Air Return | Solenoid | 3/4 NPT | 35 to 145 PSIG (2.4 to 10 bar) | Inline Valve | B | Single | NPT | 120VAC | Pneumatic | 7 | 4-way | Non-locking | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | 15mm 3-Pin DIN 43650C |
