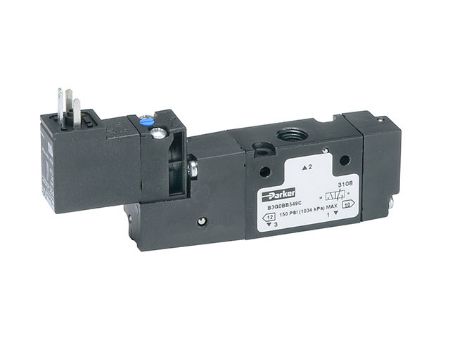

B Series Single Solenoid 3-way 2-position Valve
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
B Series Single Solenoid 3-way 2-position Valve
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Solenoid Voltage | Offset Return Type | Override Type | Port | Operator Type Detail | Pkg Qty | CV Factor | Pilot Supply | Port Inch/BSP | Parker Division | Operator Type Detail | CV Factor | Solenoid Voltage | Valve Passages | Override Type | Pilot Supply | Operating Temperature | Valve Positions | Solenoid Connection | Offset Return Type | Parker Group | Port | Operator Type | Supply Pressure Range | Series | Pneumatic Valve Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B3G0BB549C | Backordered | 8 in stock | $167.87/each | EA | EA | 24VDC | Air Return | Non-locking | 1/8 NPT | Single | 1 | 0.75 | Internal | NPT | Pneumatic | Single | 0.75 | 24VDC | 3-way | Non-locking | Internal | -15°C to 49°C (5°F to 120°F) | 2-position | 15mm 3-Pin DIN 43650C | Air Return | Automation | 1/8 NPT | Solenoid | 20 to 145 PSIG (1.4 to 10 bar) | B | Inline Valve | |
| B3G0BB553C | Backordered | Backordered | $129.13/each | EA | EA | 120VAC | Air Return | Non-locking | 1/8 NPT | Single | 1 | 0.75 | Internal | NPT | Pneumatic | Single | 0.75 | 120VAC | 3-way | Non-locking | Internal | -15°C to 49°C (5°F to 120°F) | 2-position | 15mm 3-Pin DIN 43650C | Air Return | Automation | 1/8 NPT | Solenoid | 20 to 145 PSIG (1.4 to 10 bar) | B | Inline Valve | |
| B5G1BB549C | 1 Limited Stock | 11 in stock | $150.66/each | EA | EA | 24VDC | Air Return | Non-locking | 1/4 NPT | Single | 1 | 1.4 | Internal | NPT | Pneumatic | Single | 1.4 | 24VDC | 3-way | Non-locking | Internal | -15°C to 49°C (5°F to 120°F) | 2-position | 15mm 3-Pin DIN 43650C | Air Return | Automation | 1/4 NPT | Solenoid | 20 to 145 PSIG (1.4 to 10 bar) | B | Inline Valve | |
| B5G1BB553C | Backordered | 9 in stock | $195.86/each | EA | EA | 120VAC | Air Return | Non-locking | 1/4 NPT | Single | 1 | 1.4 | Internal | NPT | Pneumatic | Single | 1.4 | 120VAC | 3-way | Non-locking | Internal | -15°C to 49°C (5°F to 120°F) | 2-position | 15mm 3-Pin DIN 43650C | Air Return | Automation | 1/4 NPT | Solenoid | 20 to 145 PSIG (1.4 to 10 bar) | B | Inline Valve | |
| B5G2BB549C | 3 in stock | 7 in stock | $162.65/each | EA | EA | 24VDC | Air Return | Non-locking | 3/8 NPT | Single | 1 | 1.4 | Internal | NPT | Pneumatic | Single | 1.4 | 24VDC | 3-way | Non-locking | Internal | -15°C to 49°C (5°F to 120°F) | 2-position | 15mm 3-Pin DIN 43650C | Air Return | Automation | 3/8 NPT | Solenoid | 20 to 145 PSIG (1.4 to 10 bar) | B | Inline Valve | |
| B5G2BB553C | 1 Limited Stock | 2 Limited Stock | $162.65/each | EA | EA | 120VAC | Air Return | Non-locking | 3/8 NPT | Single | 1 | 1.4 | Internal | NPT | Pneumatic | Single | 1.4 | 120VAC | 3-way | Non-locking | Internal | -15°C to 49°C (5°F to 120°F) | 2-position | 15mm 3-Pin DIN 43650C | Air Return | Automation | 3/8 NPT | Solenoid | 20 to 145 PSIG (1.4 to 10 bar) | B | Inline Valve | |
| B7V3BB549A | Backordered | 1 Limited Stock | $396.75/each | EA | EA | 24VDC | Air Return/Spring Assist | Non-locking | 1/2 NPT | Single | 1 | 5.9 | Internal | NPT | Pneumatic | Single | 5.9 | 24VDC | 3-way | Non-locking | Internal | -15°C to 49°C (5°F to 120°F) | 2-position | 15mm 3-Pin DIN 43650C | Air Return/Spring Assist | Automation | 1/2 NPT | Solenoid | 35 to 145 PSIG (2.4 to 10 bar) | B | Inline Valve | |
| B7V3BB553A | Backordered | Backordered | $305.19/each | EA | EA | 120VAC | Air Return/Spring Assist | Non-locking | 1/2 NPT | Single | 1 | 5.9 | Internal | NPT | Pneumatic | Single | 5.9 | 120VAC | 3-way | Non-locking | Internal | -15°C to 49°C (5°F to 120°F) | 2-position | 15mm 3-Pin DIN 43650C | Air Return/Spring Assist | Automation | 1/2 NPT | Solenoid | 35 to 145 PSIG (2.4 to 10 bar) | B | Inline Valve | |
| B8V4BB549A | Backordered | 1 Limited Stock | $445.17/each | EA | EA | 24VDC | Air Return/Spring Assist | Non-locking | 3/4 NPT | Single | 1 | 7 | Internal | NPT | Pneumatic | Single | 7 | 24VDC | 3-way | Non-locking | Internal | -15°C to 49°C (5°F to 120°F) | 2-position | 15mm 3-Pin DIN 43650C | Air Return/Spring Assist | Automation | 3/4 NPT | Solenoid | 35 to 145 PSIG (2.4 to 10 bar) | B | Inline Valve | |
| B8V4BB553A | Backordered | Backordered | $342.44/each | EA | EA | 120VAC | Air Return/Spring Assist | Non-locking | 3/4 NPT | Single | 1 | 7 | Internal | NPT | Pneumatic | Single | 7 | 120VAC | 3-way | Non-locking | Internal | -15°C to 49°C (5°F to 120°F) | 2-position | 15mm 3-Pin DIN 43650C | Air Return/Spring Assist | Automation | 3/4 NPT | Solenoid | 35 to 145 PSIG (2.4 to 10 bar) | B | Inline Valve |
