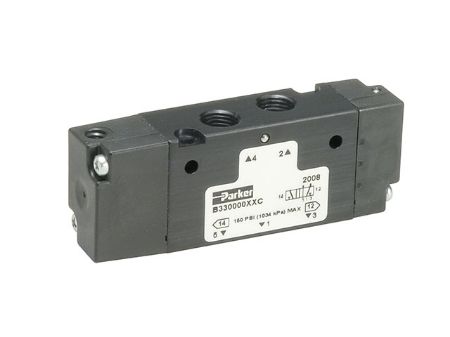

B Series Double Air Piloted 4-way 3-position Valve
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
B Series Double Air Piloted 4-way 3-position Valve
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Offset Return Type | Operator Type Detail | Pkg Qty | Port | Center Condition | CV Factor | Center Condition | Parker Division | Port Inch/BSP | Operator Type | Parker Group | Supply Pressure Range | Operating Temperature | Operator Type Detail | Series | Pneumatic Valve Type | CV Factor | Valve Positions | Offset Return Type | Valve Passages | Port |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B380000XXC | Backordered | Backordered | $137.36/each | EA | EA | Spring Return | Double | 1 | 1/8 NPT | All Ports Blocked | 0.6 | All Ports Blocked | Pneumatic | NPT | Air Piloted | Automation | Vacuum to 145 PSIG (Vacuum to 10 bar) | -15°C to 49°C (5°F to 120°F) | Double | B | Inline Valve | 0.6 | 3-position | Spring Return | 4-way | 1/8 NPT | |
| B581000XXC | Backordered | 5 in stock | $200.36/each | EA | EA | Spring Return | Double | 1 | 1/4 NPT | All Ports Blocked | 1.1 | All Ports Blocked | Pneumatic | NPT | Air Piloted | Automation | Vacuum to 145 PSIG (Vacuum to 10 bar) | -15°C to 49°C (5°F to 120°F) | Double | B | Inline Valve | 1.1 | 3-position | Spring Return | 4-way | 1/4 NPT | |
| B582000XXC | Backordered | 2 Limited Stock | $216.15/each | EA | EA | Spring Return | Double | 1 | 3/8 NPT | All Ports Blocked | 1.1 | All Ports Blocked | Pneumatic | NPT | Air Piloted | Automation | Vacuum to 145 PSIG (Vacuum to 10 bar) | -15°C to 49°C (5°F to 120°F) | Double | B | Inline Valve | 1.1 | 3-position | Spring Return | 4-way | 3/8 NPT | |
| B682000XXA | Backordered | Backordered | $242.65/each | EA | EA | Spring Return | Double | 1 | 3/8 NPT | All Ports Blocked | 2.1 | All Ports Blocked | Pneumatic | NPT | Air Piloted | Automation | Vacuum to 145 PSIG (Vacuum to 10 bar) | -15°C to 49°C (5°F to 120°F) | Double | B | Inline Valve | 2.1 | 3-position | Spring Return | 4-way | 3/8 NPT | |
| B783000XXA | Backordered | Backordered | $312.83/each | EA | EA | Spring Return | Double | 1 | 1/2 NPT | All Ports Blocked | 5.7 | All Ports Blocked | Pneumatic | NPT | Air Piloted | Automation | Vacuum to 145 PSIG (Vacuum to 10 bar) | -15°C to 49°C (5°F to 120°F) | Double | B | Inline Valve | 5.7 | 3-position | Spring Return | 4-way | 1/2 NPT | |
| B884000XXA | Backordered | Backordered | $350.18/each | EA | EA | Spring Return | Double | 1 | 3/4 NPT | All Ports Blocked | 6.6 | All Ports Blocked | Pneumatic | NPT | Air Piloted | Automation | Vacuum to 145 PSIG (Vacuum to 10 bar) | -15°C to 49°C (5°F to 120°F) | Double | B | Inline Valve | 6.6 | 3-position | Spring Return | 4-way | 3/4 NPT |
