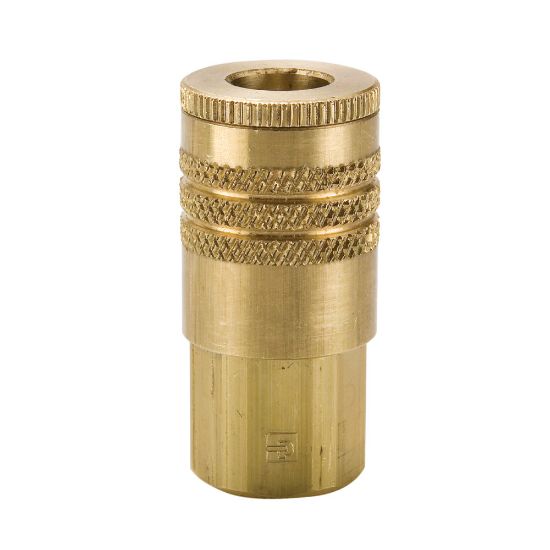

B53E - ARO 210 Interchange, Quick Connect Air Couplings - 50 Series

Parker's general purpose pneumatic, air quick connect couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	87 in stock

SKU B53E

$33.30/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	na
Connection Thread Size (inch)	3/8 - 18	Coupling Half	Female Coupler
Connection Type	Female NPTF	Application	Air Compressors
Dimensional Weight	0.02670863309352518 lb	Interchange Type	Interchangeable with ARO’s 210 series
Maximum Operating Pressure	300 psi	Hex Size	0.81 inch
Minimum Operating Temperature	-40 °F	Body Size	1/4 inch
Maximum Operating Temperature	250 °F	Seal Material	Nitrile
Product Type	Manual Connect	Body Material	Brass
Valve Type	Tubular	Division	Quick Coupling Division

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
