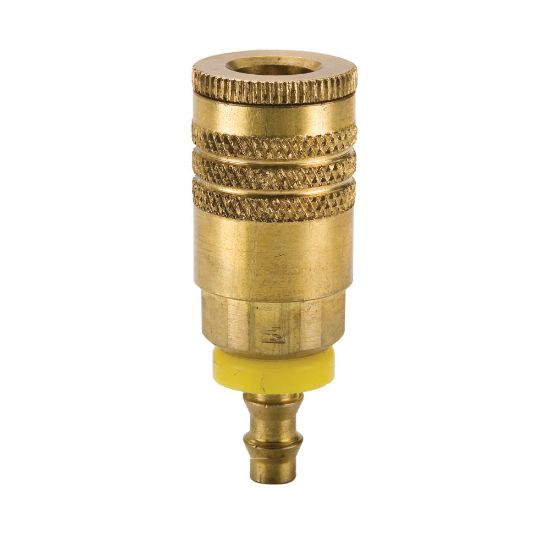

B50-3BP - ARO 210 Interchange, Quick Connect Air Couplings - 50 Series

Name: B50-3BP - ARO 210 Interchange, Quick Connect Air Couplings - 50 Series
SKU: B50-3BP
Price: 27.17 USD
Availability: InStock

Parker's general purpose pneumatic, air quick connect couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:

18 in stock

Springfield, MO	4
Peoria, IL	4
Olivette, MO	3
Joplin, MO	3
COLUMBIA, MO	2
Kansas City, KS	2

Partner Available:

207 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU B50-3BP

$27.17/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	1/4
Coupling Half	Female Coupler	Connection Thread Size (inch)	na
Connection Type	Push-Lok hose barb	Body Size	1/4 inch
Seal Material	Nitrile	Product Type	Manual Connect
Maximum Operating Temperature	250 °F	Valve Type	Tubular
Division	Quick Coupling Division	Interchange Type	Interchangeable with ARO’s 210 series
Dimensional Weight	0.026658673061550762 lb	Body Material	Brass
Maximum Operating Pressure	300 psi	Hex Size	0.75 inch
Minimum Operating Temperature	-40 °F	Application	Air Compressors
