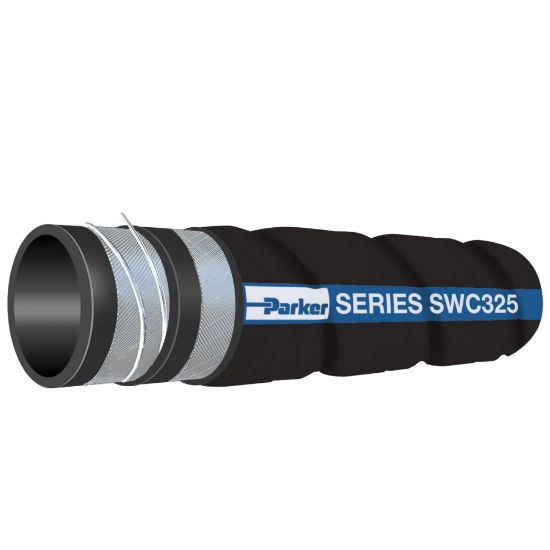

SWC325-1500 - ARCTIC TRANSLITE® Low Temperature Corrugated Petroleum Transport Suction Hose, Series SWC325

Arctic Translite Low Temperature Corrugated Petroleum Transport Suction Hose is designed for suction, discharge and transfer oil and refined fuels in applications to -67°F and 150 psi, Series SWC325

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	177 in stock

SKU SWC325-1500

$31.08/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1-1/2
Outside Diameter	52.8 mm	Package Type	Coil
Weight	0.38 kg/ft	Maximum Operating Pressure	10.3 bar
Inside Diameter	38.1 mm	Vacuum Pressure Rating	Full
Cover Color	Black	Maximum Operating Temperature	180 °F
Division	Hose Products Division	Length per Package	100 ft
Hose Inner Tube Material	Black	Design Factor	4:1
Media	Fuels (Biodiesel) - Check fuel type with our catalogue chart.	Cover Structure	Corrugated
Cover Material	Nitrile Blend	Minimum Bend Radius	3.8 mm
Minimum Operating Temperature	-55 °C	Application	Petroleum Transfer
Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
