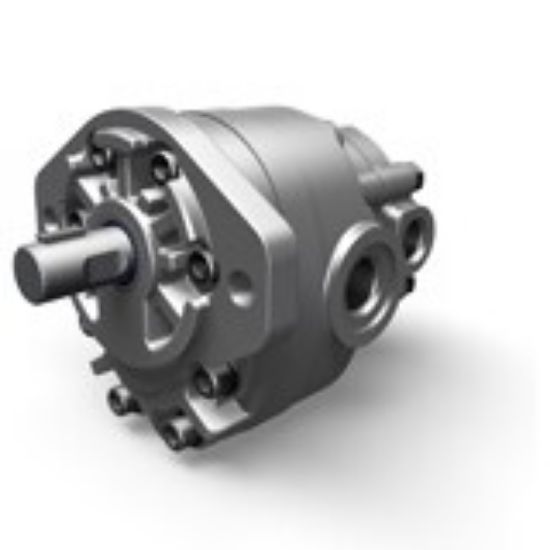

HD25AA2A14A - Aluminum Pumps – HD Series

Parker’s Aluminum Pump HD Series fixed displacement gear pump offers high performance and high power density due to its aluminum construction.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	3 in stock

SKU HD25AA2A14A

$1,564.89/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Rotation	ClockWise
Shaft Seal Material	NBR	Pressure Relief Setting (psig)	n/a
Porting	UNF-2B SAE Straight Thread: 7/8-14 Inlet x 3/4-16 Outlet - SIDE	Shaft Type	.750 Dia. Keyed w/1.56 extension
Mounting Style	2-Bolt SAE A	Overall Length (inch)	7.87 (199.898 mm)
Pump Displacement (cu in/rev)	.329 (5.38 cc/rev)	Division	Pump & Motor Division
Maximum Flow Rate	n/a	For Fluid Type	Transmission Fluids
Displacement	up to 30.18 cm3/rev	Operating Pressure	up to 2500 psi
Media	n/a	Maximum Continuous Pressure	2500.0 psi
Operating Speed	500 to 4000 RPM	Product Type	Model HD Pump with aluminum bearing sleeve, fixed displacement
Flow Rate	n/a	Maximum Kinematic Viscosity	1000 SUS (Operating)
Filter Efficiency Rating	Maintain SAE Class 4	Operating Temperature	-40 to 185 °F
Pump Type	Gear	Weight	3.2 to 4.6 kg
Maximum Operating Pressure	2500 psi	Body Material	Aluminum
Maximum Displacement	30.18/10.5 cm3/rev
