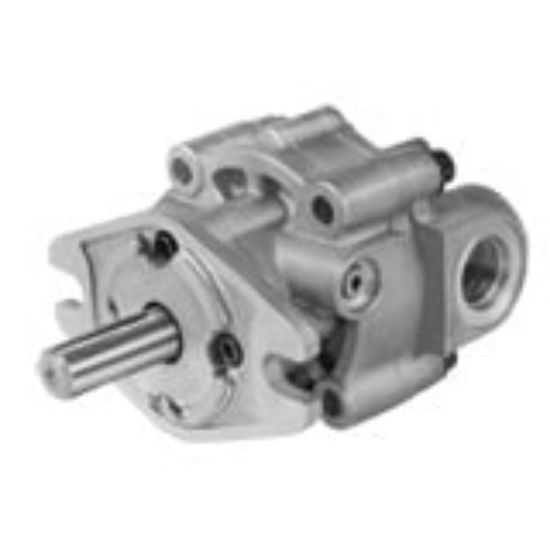

900228 - Aluminum Motors – MGG Series

Parker’s Aluminum Motor MGG Series fixed displacement High Speed Low Torque Gerotor motor offers high performance and high power density dues to its aluminum construction.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	1025 in stock

SKU 900228

$5.14/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Size	0025
Porting	SAE 10 Straight Thread - Side w/slotted by-pass valve	Rotation	CounterClockWise
Shaft Type	5/8 Dia. 9-tooth spline	Weight (lbs)	3.3
Flow Rate (gpm)	2.51	Mounting Style	4-Bolt
Shaft Seal Material	NBR w/dust seal	Motor Displacement (cu in/rev)	0.580
Number of Ports	SAE 10 Straight Thread - Side with slotted by-pass valve	Size	25 inch
Maximum Operating Speed	5000 RPM	Division	Pump & Motor Division
Shaft Seal Material	NBR with dust seal	Shaft Type	9-tooth Ø5/8 Spline
Maximum Continuous Pressure	2000 psi	Displacement	0.58 inch3/rev (Motor)
Product Type	Gerotor Motor aluminum with roller bearing	Direction of Rotation	Counter Clockwise
Mounting Type	4-Bolt	Filter Efficiency Rating	10 micron [recommended minimum]
Weight	1.5 kg	Maximum Operating Pressure	2500 psi
Maximum Oil Temperature	180 °F	Flow Rate	2.51 Gal/min
Maximum Kinematic Viscosity	150 SUS	Torque Rating	92 lb-inch
Maximum Continuous Pressure	2000 PSI	Motor Displacement	0.58 in3/rev
Displacement	0.58 Inch3/rev (Motor)	Type	Gerotor Motor Aluminum with Roller Bearing
Direction of Rotation	Counter Clockwise	Size	25 Inch
Maximum Operating Speed	5000 rpm	Filter Efficiency Rating	10 Micron
Maximum Oil Temperature	180 °F	Flow Rate	2.51 gpm
Torque Rating	92 lb-in	Shaft Type	5/8 Dia. 9-Tooth Spline
Mounting Option	4-Bolt	Maximum Kinematic Viscosity	150 SUS
Porting	SAE 10 Straight Thread - Side w/Slotted by-Pass Valve	Shaft Seal Material	NBR w/Dust Seal
Rotation	Counter ClockWise

Product resources

Literature and Reference Materials, Selector Guides

Gerotor Feature Chart (PDF)

Literature and Reference Materials
