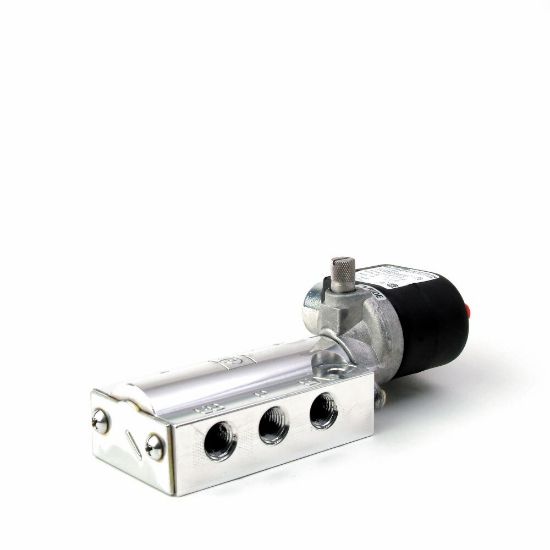

73419AN2NN00N0L111P3 - 9 Family - 4 Way (5/2) Standard-Duty VAP Valves

These durable, yet economical aluminum 4-way (5/2) valves are used to actuate double acting cylinders and pilot larger process control valves in diverse industries.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU 73419AN2NN00N0L111P3

$455.44/each

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Seal Material	NBR	Input Voltage	120/60, 110/50
Actuation Type	Internally Piloted	Insulation Class	Class F
Ingress Protection Rating	N/A	Maximum Pressure Differential	150.0
Specifications Met	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	Maximum Ambient Temperature	167.0
Body Material	Aluminum	Port Size	1/4
Power Consumption	10.0	Coil Type	18" Leads
Media	Air, Inert Gas	Function	2 Position, Single Solenoid
Valve Type	4 Way (5/2)	Orifice Size	1/4
Minimum Pressure Differential	30.0	Installation	IOM 7403
Main Flow Coefficient	1.0	Maximum Fluid Temperature	167.0
Preventive Maintenance Kit	7K901	Override Functionality	N/A
Division	Fluid Control Division
