797TC Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

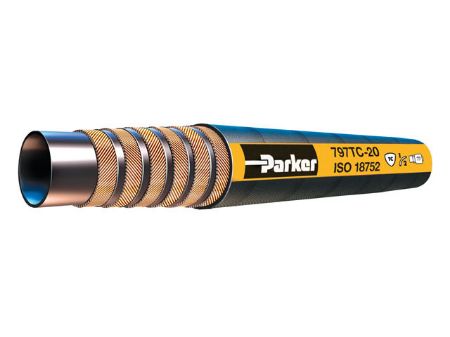

Parker’s GlobalCore 797ST hose provides 6,000 psi (35 MPa) constant working pressure in all sizes. ½ bend radius of SAE spiral hose. Flex impulse tested providing a hose superior in both performance and service life. Meets ISO 18752 performance specification.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Material | Working Pressure | Inner Diameter | Mating Fitting Series | Pkg Qty/UOM | Pkg Qty | Parker Division | Working Pressure Range | Distinct Properties | Inch/Metric | Trade Name | Working Pressure | Specification | Application | Inner Diameter Inch/mm | Parker Group | Minimum Bend Radius | Hose Pressure Range | Inner Diameter | Mating End Fitting Series | Hose Category | Series | Material | Operating Temperature | ISO 18752 Performance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 797TC-10-BX | Backordered | Backordered | $38.60/foot | FT | FT | Rubber | 6,000 psi (42 MPa) | 0.625 Inch | 77 | 50 FT | 50 | Hose Products | > 5000 PSI (345 bar) | Tough Cover Constant Pressure 6000 PSI | Inch | GlobalCore | 6,000 psi (42 MPa) | ISO 18752 | Hydraulic | Inch | Fluid Connector | 4 1/2 Inch | High | 0.625 Inch | 77 | Hydraulic Industry Standard | 797TC | Rubber | -40°F to +257°F (-40°C to +125°C) | DC | |
| 797TC-10-RL | 374 in stock | 2881 in stock | $31.18/foot | FT | Rubber | 6,000 psi (42 MPa) | 0.625 Inch | 77 | Hose Products | > 5000 PSI (345 bar) | Tough Cover Constant Pressure 6000 PSI | Inch | GlobalCore | 6,000 psi (42 MPa) | ISO 18752 | Hydraulic | Inch | Fluid Connector | 4 1/2 Inch | High | 0.625 Inch | 77 | Hydraulic Industry Standard | 797TC | Rubber | -40°F to +257°F (-40°C to +125°C) | DC | ||||
| 797TC-12-BX | Backordered | Backordered | $54.86/foot | FT | FT | Rubber | 6,000 psi (42 MPa) | 0.75 Inch | 77 | 50 FT | 50 | Hose Products | > 5000 PSI (345 bar) | Tough Cover Constant Pressure 6000 PSI | Inch | GlobalCore | 6,000 psi (42 MPa) | ISO 18752 | Hydraulic | Inch | Fluid Connector | 5 1/4 Inch | High | 0.75 Inch | 77 | Hydraulic Industry Standard | 797TC | Rubber | -40°F to +257°F (-40°C to +125°C) | DC | |
| 797TC-12-RL | 1150 in stock | 8679 in stock | $44.32/foot | FT | Rubber | 6,000 psi (42 MPa) | 0.75 Inch | 77 | Hose Products | > 5000 PSI (345 bar) | Tough Cover Constant Pressure 6000 PSI | Inch | GlobalCore | 6,000 psi (42 MPa) | ISO 18752 | Hydraulic | Inch | Fluid Connector | 5 1/4 Inch | High | 0.75 Inch | 77 | Hydraulic Industry Standard | 797TC | Rubber | -40°F to +257°F (-40°C to +125°C) | DC | ||||
| 797TC-16-BX | Backordered | Backordered | $67.45/foot | FT | FT | Rubber | 6,000 psi (42 MPa) | 1 Inch | 77 | 50 FT | 50 | Hose Products | > 5000 PSI (345 bar) | Tough Cover Constant Pressure 6000 PSI | Inch | GlobalCore | 6,000 psi (42 MPa) | ISO 18752 | Hydraulic | Inch | Fluid Connector | 6 1/2 Inch | High | 1 Inch | 77 | Hydraulic Industry Standard | 797TC | Rubber | -40°F to +257°F (-40°C to +125°C) | DC | |
| 797TC-16-RL | 998 in stock | 6607 in stock | $54.48/foot | FT | Rubber | 6,000 psi (42 MPa) | 1 Inch | 77 | Hose Products | > 5000 PSI (345 bar) | Tough Cover Constant Pressure 6000 PSI | Inch | GlobalCore | 6,000 psi (42 MPa) | ISO 18752 | Hydraulic | Inch | Fluid Connector | 6 1/2 Inch | High | 1 Inch | 77 | Hydraulic Industry Standard | 797TC | Rubber | -40°F to +257°F (-40°C to +125°C) | DC | ||||
| 797TC-20-BX | Backordered | Backordered | $114.46/foot | FT | Rubber | 6,000 psi (42 MPa) | 1.25 Inch | 77 | Hose Products | > 5000 PSI (345 bar) | Tough Cover Constant Pressure 6000 PSI | Inch | GlobalCore | 6,000 psi (42 MPa) | ISO 18752 | Hydraulic | Inch | Fluid Connector | 8 3/4 Inch | High | 1.25 Inch | 77 | Hydraulic Industry Standard | 797TC | Rubber | -40°F to +257°F (-40°C to +125°C) | DC | ||||
| 797TC-24-BX | Backordered | 62 in stock | $168.70/foot | FT | Rubber | 6,000 psi (42 MPa) | 1.5 Inch | 77 | Hose Products | > 5000 PSI (345 bar) | Tough Cover Constant Pressure 6000 PSI | Inch | GlobalCore | 6,000 psi (42 MPa) | ISO 18752 | Hydraulic | Inch | Fluid Connector | 12 Inch | High | 1.5 Inch | 77 | Hydraulic Industry Standard | 797TC | Rubber | -40°F to +257°F (-40°C to +125°C) | DC | ||||
| 797TC-32-BX | Backordered | 50 in stock | $221.81/foot | FT | Rubber | 6,000 psi (42 MPa) | 2 Inch | 77 | Hose Products | > 5000 PSI (345 bar) | Tough Cover Constant Pressure 6000 PSI | Inch | GlobalCore | 6,000 psi (42 MPa) | ISO 18752 | Hydraulic | Inch | Fluid Connector | 15 Inch | High | 2 Inch | 77 | Hydraulic Industry Standard | 797TC | Rubber | -40°F to +257°F (-40°C to +125°C) | DC | ||||
| 797TC-4-BX | Backordered | 30 in stock | $9.93/foot | FT | Rubber | 6,000 psi (42 MPa) | 0.25 Inch | 43 | Hose Products | > 5000 PSI (345 bar) | Tough Cover Constant Pressure 6000 PSI | Inch | GlobalCore | 6,000 psi (42 MPa) | ISO 18752 | Hydraulic | Inch | Fluid Connector | 2 Inch | High | 0.25 Inch | 43 | Hydraulic Industry Standard | 797TC | Rubber | -40°F to +212°F (-40°C to +100°C) | AC | ||||
| 797TC-4-RL | 1224 in stock | 29522 in stock | $6.16/foot | FT | Rubber | 6,000 psi (42 MPa) | 0.25 Inch | 43 | Hose Products | > 5000 PSI (345 bar) | Tough Cover Constant Pressure 6000 PSI | Inch | GlobalCore | 6,000 psi (42 MPa) | ISO 18752 | Hydraulic | Inch | Fluid Connector | 2 Inch | High | 0.25 Inch | 43 | Hydraulic Industry Standard | 797TC | Rubber | -40°F to +212°F (-40°C to +100°C) | AC | ||||
| 797TC-6-BX | Backordered | 48 in stock | $27.58/foot | FT | Rubber | 6,000 psi (42 MPa) | 0.375 Inch | 43 | Hose Products | > 5000 PSI (345 bar) | Tough Cover Constant Pressure 6000 PSI | Inch | GlobalCore | 6,000 psi (42 MPa) | ISO 18752 | Hydraulic | Inch | Fluid Connector | 2 1/2 Inch | High | 0.375 Inch | 43 | Hydraulic Industry Standard | 797TC | Rubber | -40°F to +212°F (-40°C to +100°C) | CC | ||||
| 797TC-6-RL | 1257 in stock | 6888 in stock | $17.14/foot | FT | Rubber | 6,000 psi (42 MPa) | 0.375 Inch | 43 | Hose Products | > 5000 PSI (345 bar) | Tough Cover Constant Pressure 6000 PSI | Inch | GlobalCore | 6,000 psi (42 MPa) | ISO 18752 | Hydraulic | Inch | Fluid Connector | 2 1/2 Inch | High | 0.375 Inch | 43 | Hydraulic Industry Standard | 797TC | Rubber | -40°F to +212°F (-40°C to +100°C) | CC | ||||
| 797TC-8-BX | Backordered | 48 in stock | $45.94/foot | FT | FT | Rubber | 6,000 psi (42 MPa) | 0.5 Inch | 43 | 50 FT | 50 | Hose Products | > 5000 PSI (345 bar) | Tough Cover Constant Pressure 6000 PSI | Inch | GlobalCore | 6,000 psi (42 MPa) | ISO 18752 | Hydraulic | Inch | Fluid Connector | 4 Inch | High | 0.5 Inch | 43 | Hydraulic Industry Standard | 797TC | Rubber | -40°F to +257°F (-40°C to +125°C) | DC | |
| 797TC-8-RL | 1124 in stock | 7844 in stock | $28.55/foot | FT | Rubber | 6,000 psi (42 MPa) | 0.5 Inch | 43 | Hose Products | > 5000 PSI (345 bar) | Tough Cover Constant Pressure 6000 PSI | Inch | GlobalCore | 6,000 psi (42 MPa) | ISO 18752 | Hydraulic | Inch | Fluid Connector | 4 Inch | High | 0.5 Inch | 43 | Hydraulic Industry Standard | 797TC | Rubber | -40°F to +257°F (-40°C to +125°C) | DC |
