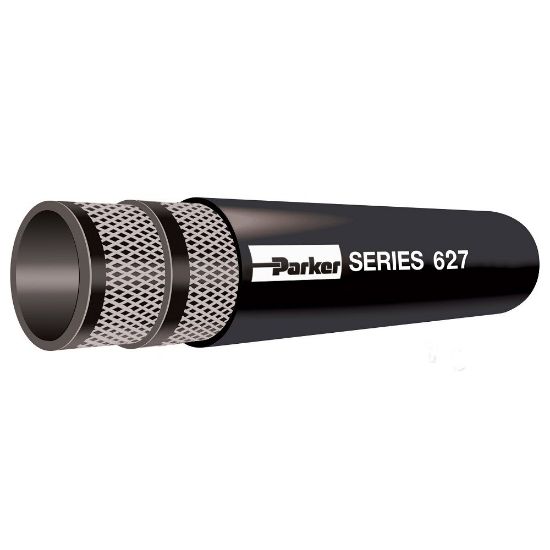

627-12-RL - 627 Hose

Parker’s 627 is utilized for the transfer of coolants in high performance computers and data farms. The EPDM, peroxide cured tube is specially formulated for compatibility with industrial coolants.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	380 in stock

SKU 627-12-RL

$8.35/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Specifications Met	UL
Hose Inside Diameter	3/4	Maximum Operating Pressure	150
Division	Hose Products Division	Application	Cooling Systems
Media	Coolants (Industrial Coolants)	Maximum Operating Pressure	10 bar
Maximum Operating Temperature	212 °F	Minimum Operating Temperature	-40 °F
Specifications Met	UL 94 (HB)	Weight	0.51 kg/m
Outside Diameter	0.900 inch	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Inside Diameter	1/2 inch	Minimum Bend Radius	1.3 inch
Hose Inner Tube Material	Peroxide Cured	Hose Reinforcement Material	Mutiple Plies of Textile
Cover Color	Black
