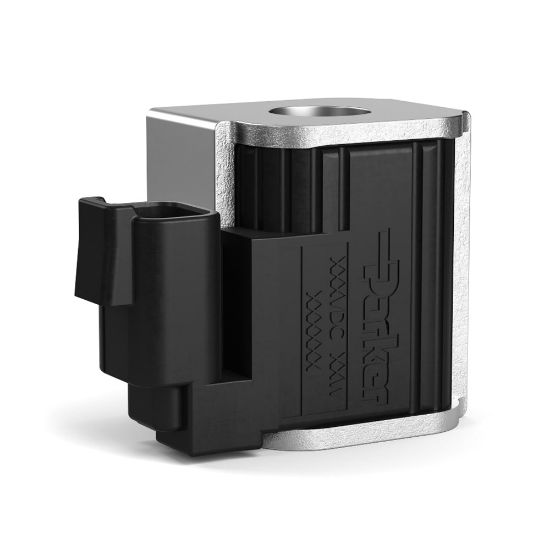

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

CAP024HE - 5/8" Super Coil

Name: CAP024HE - 5/8" Super Coil
SKU: CAP024HE
Price: 80.84 USD
Availability: InStock

Parker’s broad range of solenoid and proportional cartridge valves are complemented by a wide selection of options in the Super Coil series of IP69K DC and AC coils. Multiple voltage and termination styles are standard cataloged options.

Manufacturer: Parker

Availability:

3 in stock

Olivette, MO

Partner Available:

2 Limited Stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU CAP024HE

$80.84/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Voltage	24 VDC
Connection Type	Integral Deutsch	Diode	Yes
Power Consumption	28 - High Watt	Seal Material	n/a
Function	5/8" Super Coil	Current	1.17 A
Minimum Operating Temperature	-40 °F	Duty Cycle	Continuous @ 100% Voltage
Flow Rate	n/a	Actuation Type	n/a
Maximum Operating Pressure	n/a	Body Material	n/a
Weight	0.64 lb	Division	Hydraulic Systems Division
Resistance	20.6 Ω	Coil Type	Puissant
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	n/a
Maximum Operating Temperature	200 °C	For Fluid Type	n/a
