CAP024D - 5/8" Super Coil

Name: CAP024D - 5/8" Super Coil
SKU: CAP024D
Price: 39.95 USD
Availability: LimitedAvailability

Parker’s broad range of solenoid and proportional cartridge valves are complemented by a wide selection of options in the Super Coil series of IP69K DC and AC coils. Multiple voltage and termination styles are standard cataloged options.

Manufacturer: Parker

Availability:

1 Limited Stock

Wichita, KS

Partner Available:

253 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU CAP024D

$39.95/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Voltage	24 VDC
Connection Type	Din	Diode	No
Power Consumption	28 - High Watt	Minimum Operating Temperature	-40 °F
Current	1.17 A	Flow Rate	n/a
Duty Cycle	Continuous @ 100% Voltage	Maximum Operating Pressure	n/a
Actuation Type	n/a	Weight	0.64 lb
Resistance	20.6 Ω	Division	Hydraulic Systems Division
Body Material	n/a	Coil Type	Puissant
Maximum Flow Rate	n/a	Division	Hydraulic Cartridge Systems Division
For Fluid Type	n/a	Maximum Operating Temperature	200 °C
Seal Material	n/a	Function	5/8" Super Coil

Customers who bought this item also bought

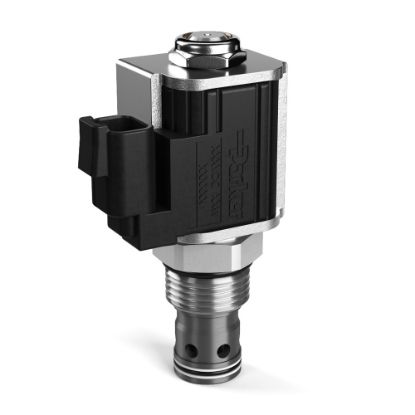

DSH121CR - 2 Way Poppet Type Solenoid Valve

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

$141.16/each
