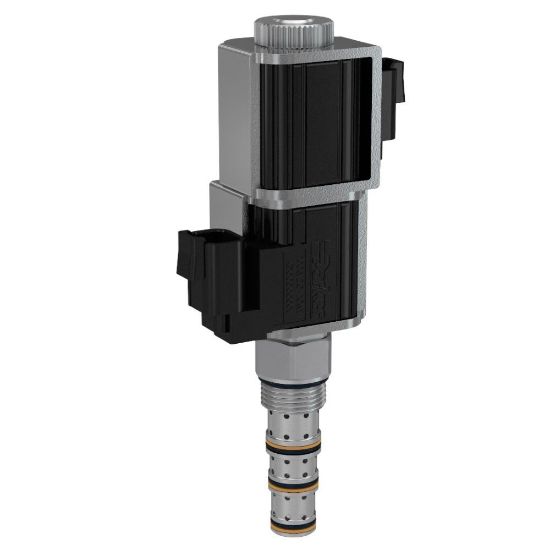

GS045950ND - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	3 in stock

SKU GS045950ND

$258.45/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Flow Rate	11 GAL/MIN, 42 L/MIN	Actuation Type	Electrical, Manual
Configuration	Open Center	Seal Type	Nitrile
Maximum Operating Temperature	+121 °C	Leak Rate	160 @ 3000 PSI (210 BAR) cm3/min
Maximum Flow Rate	42 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Seal Material	Nitrile	Valve Material	All parts steel. All operating parts hardened steel
Maximum Tank Pressure	210 bar	Maximum Inlet Pressure Rating	5000 psi
Function	4-way	Response Time	30-60 ms
Input Voltage	85% of rated voltage at 72°F (20°C) min	Minimum Operating Temperature	-30 °F
Mounting Type	Screw in cartridge valve	Override Functionality	Push/Pull - Center Detent
Cavity Size	C10-4	Flow Rate	11 Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Actuation Type	Electrical, Manual	Operating Temperature	-30 to +250 °F
Maximum Operating Pressure	5000 psi	Configuration	Open Center
Coil Nut Tightening Torque	4.1 Nm	Body Material	N/A
Operation Type	Solenoid operated, Manually operated	Weight	0.58 lb
Division	Hydraulic Systems Division	Installation Torque	25 lb-ft
Coil Type	5/8" Super Coil
