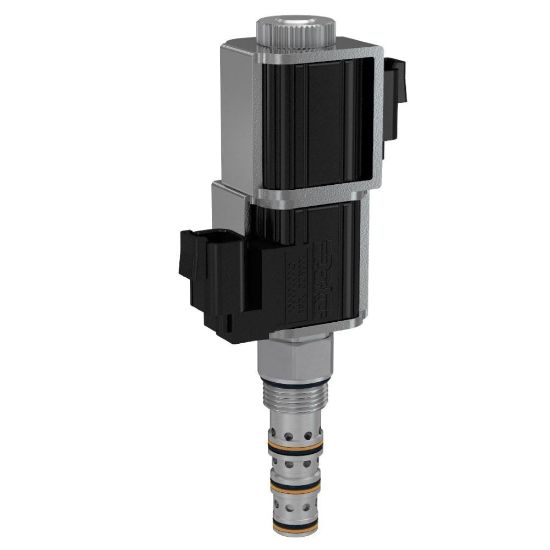

GS045200ND - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	7 in stock

SKU GS045200ND

$189.10/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Flow Rate	11 GAL/MIN, 42 L/MIN	Actuation Type	Electrical
Configuration	Closed Center	Seal Type	Nitrile
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Electrical
Configuration	Closed Center	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-30 to +250 °F	Coil Nut Tightening Torque	4.1 Nm
Body Material	N/A	Weight	0.26 kg
Maximum Operating Pressure	5000 psi	Installation Torque	25 lb-ft
Operation Type	Solenoid operated	Division	Hydraulic Systems Division
Maximum Operating Temperature	+250 °F	Leak Rate	160 @ 3000 PSI (210 BAR) cm3/min
Coil Type	5/8" Super Coil	Maximum Flow Rate	42 L/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Tank Pressure	210 bar
Maximum Inlet Pressure Rating	5000 psi	Seal Material	Nitrile
Valve Material	All parts steel. All operating parts hardened steel	Response Time	30-60 ms
Function	4-way	Input Voltage	85% of rated voltage at 72°F (20°C) min
Minimum Operating Temperature	-34 °C	Cavity Size	C10-4
Flow Rate	42 L/min	Mounting Type	Screw in cartridge valve
Override Functionality	N/A
