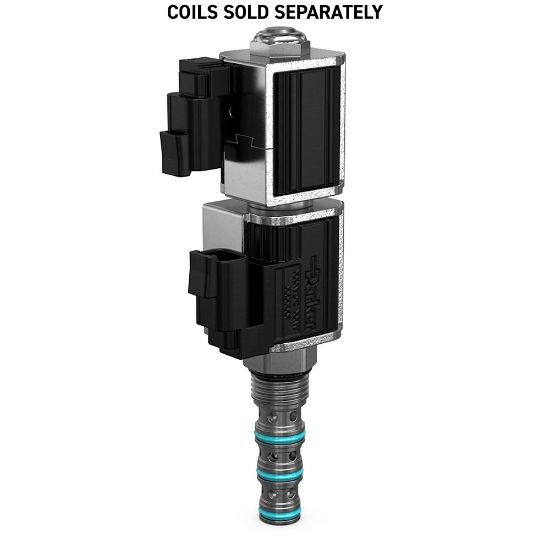

DSL105C2 - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU DSL105C2

$133.11/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	5 GAL/MIN, 19 L/MIN
Actuation Type	Electrical	Configuration	Open Center
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Seal Type	D-Ring (Standard)
Leak Rate	160 @ 3600 PSI (250 BAR) cm3/min	Maximum Operating Temperature	+93 °C
Seal Material	D-Ring (Standard)	Valve Material	All parts steel. All operating parts hardened steel
Maximum Flow Rate	5 Gal/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Coil Type	5/8" Super Coil	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	40-150 ms	Maximum Inlet Pressure Rating	250 bar
Maximum Tank Pressure	N/A psi	Function	4-way
Flow Rate	5 Gal/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Mounting Type	Screw in cartridge valve	Override Functionality	N/A
Cavity Size	C10-4	Minimum Operating Temperature	-35 °F
Body Material	N/A	Division	Hydraulic Systems Division
Installation Torque	50-56 Nm	Operation Type	Solenoid operated
Actuation Type	Electrical	Operating Temperature	-37 to +93 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Weight	0.29 kg
Configuration	Open Center	Maximum Operating Pressure	250 bar
Coil Nut Tightening Torque	7-10 Nm
