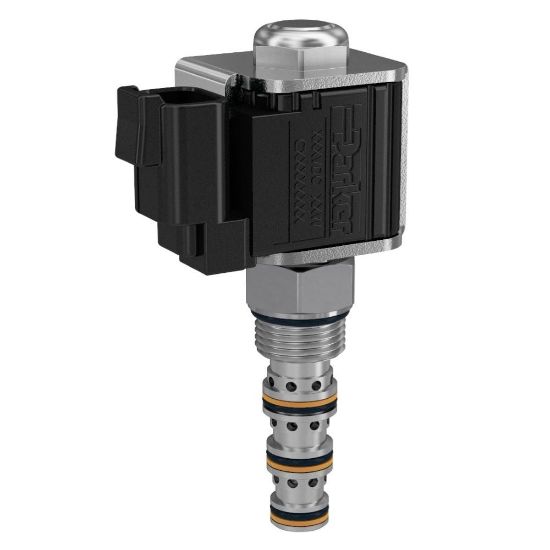

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

GS024200N - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU GS024200N

$156.28/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Flow Rate	5 GAL/MIN, 19 L/MIN
Actuation Type	Electrical	Flow Direction	2-1, 3-4 De-Energized, 3-2, 4-1 Energized
Configuration	Reversing Spool	Input Voltage	85% of rated voltage at 72°F (20°C) min
Function	4-way	Response Time	50 ms
Flow Direction	2-1, 3-4 De-Energized, 3-2, 4-1 Energized	Cavity Size	C08-4
Minimum Operating Temperature	-34 °C	Mounting Type	Screw in cartridge valve
Override Functionality	N/A	Operating Temperature	-34 to +121 °C
Configuration	Reversing Spool	Coil Nut Tightening Torque	3 lb-ft
Actuation Type	Electrical	Flow Rate	19 L/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Operating Pressure	350 bar	Installation Torque	22 lb-ft
Body Material	N/A	Weight	0.66 lb
Division	Hydraulic Systems Division	Operation Type	Solenoid operated
Coil Type	1/2" Super Coil	Maximum Flow Rate	5 Gal/min
Leak Rate	150 @ 5000 PSI (350 BAR) cm3/min	Maximum Operating Temperature	+250 °F
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	Nitrile	Maximum Inlet Pressure Rating	350 bar
