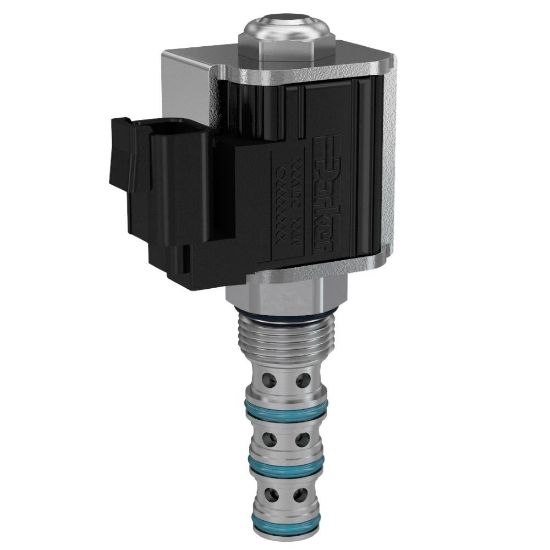

DSL104B2V - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DSL104B2V

$103.75/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Flow Rate	10 GAL/MIN, 38 L/MIN	Actuation Type	Electrical
Configuration	N/A	Flow Direction	3-2, 4-1 De-Energized, 2-1, 3 and 4 blocked Energized
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Maximum Operating Temperature	+204 °C
Leak Rate	230 @ 3600 PSI (250 BAR) cm3/min	Coil Type	5/8" Super Coil
Maximum Flow Rate	10 Gal/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operation Type	Solenoid operated	Division	Hydraulic Systems Division
Response Time	30-60 ms	Function	4-way
Input Voltage	85% of rated voltage at 72°F (20°C) min	Flow Direction	3-2, 4-1 De-Energized, 2-1, 3 and 4 blocked Energized
Maximum Inlet Pressure Rating	250 bar	Seal Material	Fluorocarbon
Valve Material	All parts steel. All operating parts hardened steel	Override Functionality	N/A
Mounting Type	Screw in cartridge valve	Minimum Operating Temperature	-26 °C
Cavity Size	C10-4	Body Material	N/A
Weight	0.2 kg	Maximum Operating Pressure	250 bar
Installation Torque	50-56 Nm	Flow Rate	38 L/min
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Electrical
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-26 to +204 °C
Coil Nut Tightening Torque	7-10 Nm	Configuration	N/A
