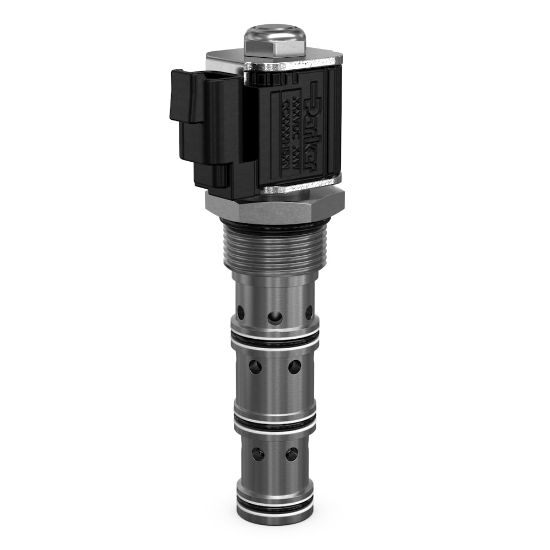

DSH164HRV - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DSH164HRV

$347.13/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Actuation Type	Electrical
Flow Direction	2-1, 3-4 De-Energized, 3-2, 4-1 Energized	Flow Rate	30 GAL/MIN, 113 L/MIN
Configuration	Motor Regen Transition	Flow Direction	2-1, 3-4 De-Energized, 3-2, 4-1 Energized
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	130 ms
Maximum Inlet Pressure Rating	5000 psi	Function	4-way
Flow Rate	30 Gal/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Override Functionality	N/A	Cavity Size	C16-4
Minimum Operating Temperature	-15 °F	Mounting Type	Screw in cartridge valve
Body Material	N/A	Operation Type	Solenoid operated
Installation Torque	30-40 lb-ft	Division	Hydraulic Systems Division
Actuation Type	Electrical	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Weight	0.59 kg	Operating Temperature	-15 to +400 °F
Coil Nut Tightening Torque	7-10 Nm	Configuration	Motor Regen Transition
Maximum Operating Pressure	5000 psi	Leak Rate	350 De-energized, 1.5 GPM Energized Pilot Flow @ 3000 PSI (207 BAR) cm3/min
Maximum Operating Temperature	+400 °F	Seal Material	Fluorocarbon
Valve Material	All parts steel. All operating parts hardened steel	Maximum Flow Rate	30 Gal/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Coil Type	1/2" Super Coil
