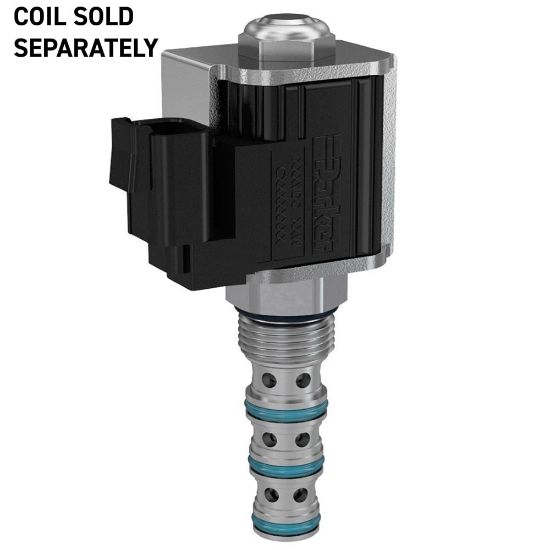

DSH104M - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DSH104M

$96.79/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Seal Material	D-Ring (Standard)	Actuation Type	Electrical
Configuration	N/A	Flow Direction	2-1, 3-4 De-Energized, All ports blocked Energized
Flow Rate	7 GAL/MIN, 27 L/MIN	Division	Hydraulic Systems Division
Operating Temperature	-37 to +93 °C	Flow Rate	27 L/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Actuation Type	Electrical
Maximum Flow Rate	7 Gal/min	Maximum Operating Pressure	350 bar
Maximum Operating Temperature	+200 °F	Minimum Operating Temperature	-35 °F
Body Material	N/A	Seal Material	D-Ring (Standard)
Flow Direction	2-1, 3-4 De-Energized, All ports blocked Energized	Weight	0.2 kg
Mounting Type	Screw in cartridge valve	Operation Type	Solenoid operated
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	N/A
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Function	4-way
Coil Type	5/8" Super Coil	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Leak Rate	160 @ 5000 PSI (350 BAR) cm3/min	Cavity Size	C10-4
Valve Material	All parts steel. All operating parts hardened steel	Installation Torque	69-75 Nm
Maximum Inlet Pressure Rating	350 bar	Override Functionality	N/A
Response Time	30-60 ms	Coil Nut Tightening Torque	7-10 Nm
