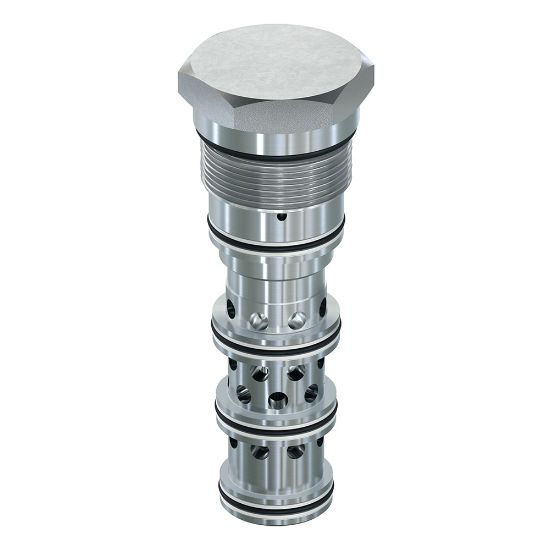

N5B300-6.9V - 3 Way/2 Position Pilot Operated Directional Control Valves

Parker’s N5 valves are high flow / high pressure 3-way 2-position spool-type pilot-operated cartridge valves that can be used to control direction, pressure, or flow.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU N5B300-6.9V

$358.85/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Switching Pressure	100 PSI, 6.9 BAR	Flow Direction	2-3 Neutral, 3-4 Piloted
Configuration	Closed Transition	Flow Rate	105 GAL/MIN, 400 L/MIN
Standard Flow Rate Setting	71 GAL/MIN, 270 L/MIN	Installation Torque	118 lb-ft
Weight	2.2 lb	Maximum Operating Pressure	6000 psi
Pilot Location	External	Body Material	N/A
Configuration	Closed Transition	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-15 to +400 °F	Drain Option	External
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Switching
Leak Rate	400 @ 2900 PSI (200 BAR) cm3/min	Maximum Flow Rate	105 Gal/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+204 °C
Operation Type	Pilot Operated	Standard Flow Rate Setting	270 L/min
Division	Hydraulic Systems Division	Flow Direction	2-3 Neutral, 3-4 Piloted
Function	Diverter	Seal Material	Fluorocarbon
Valve Material	All parts steel. All operating parts hardened steel	Maximum Inlet Pressure Rating	6000 psi
Switching Pressure	100 psi	Flow Rate	400 L/min
Minimum Operating Temperature	-15 °F	Cavity Size	100-1
