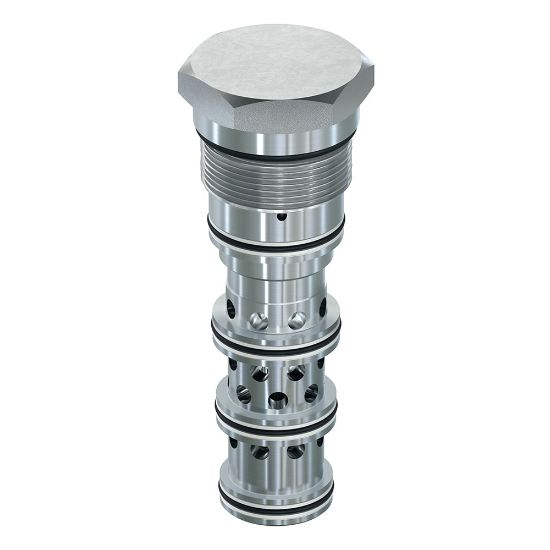

N5B300-10.0N - 3 Way/2 Position Pilot Operated Directional Control Valves

Parker’s N5 valves are high flow / high pressure 3-way 2-position spool-type pilot-operated cartridge valves that can be used to control direction, pressure, or flow.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU N5B300-10.0N

$346.63/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Direction	2-3 Neutral, 3-4 Piloted	Switching Pressure	145 PSI, 10 BAR
Configuration	Closed Transition	Flow Rate	105 GAL/MIN, 400 L/MIN
Standard Flow Rate Setting	71 GAL/MIN, 270 L/MIN	Drain Option	External
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Switching
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-30 to +250 °F
Maximum Operating Pressure	420 bar	Configuration	Closed Transition
Flow Rate	105 Gal/min	Operation Type	Pilot Operated
Standard Flow Rate Setting	71 Gal/min	Body Material	N/A
Pilot Location	External	Weight	2.2 lb
Division	Hydraulic Systems Division	Installation Torque	118 lb-ft
Maximum Inlet Pressure Rating	420 bar	Seal Material	Nitrile
Valve Material	All parts steel. All operating parts hardened steel	Maximum Operating Temperature	+121 °C
Leak Rate	400 @ 2900 PSI (200 BAR) cm3/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Flow Rate	105 Gal/min	Switching Pressure	145 psi
Minimum Operating Temperature	-30 °F	Cavity Size	100-1
Flow Direction	2-3 Neutral, 3-4 Piloted	Function	Diverter
