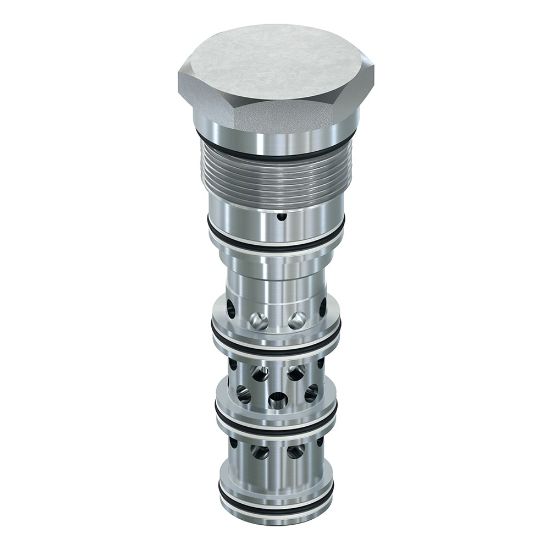

N5A300-10.0V - 3 Way/2 Position Pilot Operated Directional Control Valves

Parker’s N5 valves are high flow / high pressure 3-way 2-position spool-type pilot-operated cartridge valves that can be used to control direction, pressure, or flow.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU N5A300-10.0V

$358.85/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Flow Direction	2-3 Neutral, 3-4 Piloted	Switching Pressure	145 PSI, 10 BAR
Configuration	Open Transition	Flow Rate	105 GAL/MIN, 400 L/MIN
Standard Flow Rate Setting	71 GAL/MIN, 270 L/MIN	Function	Diverter
Flow Direction	2-3 Neutral, 3-4 Piloted	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-15 to +400	Flow Rate	105
Drain Option	External	Cavity Size	100-1
Minimum Operating Temperature	-15	Switching Pressure	145
Installation Torque	118	Operation Type	Pilot Operated
Division	Hydraulic Systems Division	Configuration	Open Transition
Weight	2.2	Maximum Operating Pressure	6000
Pilot Location	External	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Body Material	N/A	Actuation Type	Switching
Seal Material	Fluorocarbon	Valve Material	All parts steel. All operating parts hardened steel
Leak Rate	400 @ 2900 PSI (200 BAR)	Maximum Inlet Pressure Rating	6000
Maximum Operating Temperature	+400	Maximum Flow Rate	105
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Standard Flow Rate Setting	71
