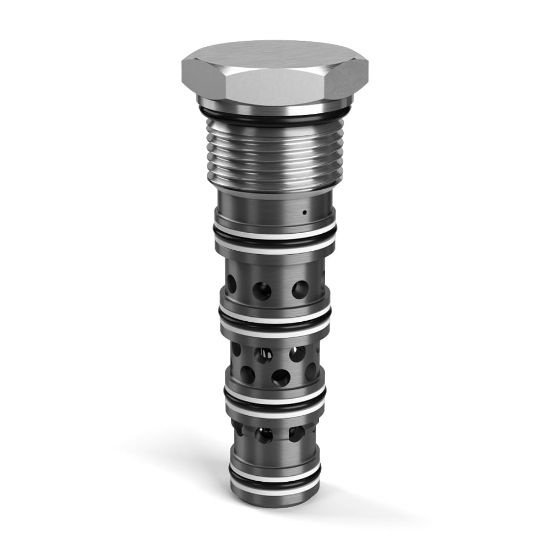

N5A125-15.0N - 3 Way/2 Position Pilot Operated Directional Control Valves

Parker’s N5 valves are high flow / high pressure 3-way 2-position spool-type pilot-operated cartridge valves that can be used to control direction, pressure, or flow.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU N5A125-15.0N

$196.70/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	42 GAL/MIN, 160 L/MIN	Flow Direction	2-3 Neutral, 3-4 Piloted
Configuration	Open Transition	Switching Pressure	217 PSI, 15 BAR
Standard Flow Rate Setting	24 GAL/MIN, 90 L/MIN	Cavity Size	5A
Minimum Operating Temperature	-34 °C	Switching Pressure	15 bar
Flow Direction	2-3 Neutral, 3-4 Piloted	Function	Diverter
Actuation Type	Switching	Drain Option	External
Operating Temperature	-30 to +250 °F	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	Open Transition	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Flow Rate	42 Gal/min	Division	Hydraulic Systems Division
Operation Type	Pilot Operated	Standard Flow Rate Setting	24 Gal/min
Body Material	N/A	Installation Torque	85 Nm
Weight	0.33 kg	Pilot Location	External
Maximum Operating Pressure	6000 psi	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	Nitrile	Maximum Inlet Pressure Rating	6000 psi
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+250 °F
Maximum Flow Rate	160 L/min	Leak Rate	275 @ 2900 PSI (200 BAR) cm3/min
