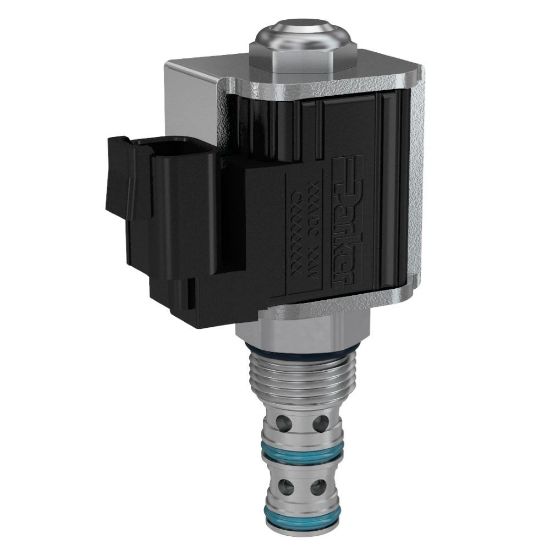

DSL103BV - 3 Way Solenoid Valves for High Pressure Hydraulic Applications

High pressure solenoid valves are direct acting 3-way, 2-position spool-type to cover a wide range of flows up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi). These screw-in cartridge valves are fast to respond to coil voltage.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DSL103BV

$72.86/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Flow Rate	8 GAL/MIN, 30 L/MIN	Actuation Type	Electrical
Flow Direction	2-1 De-energized, 2-3 Energized	Configuration	Normally Closed, Selector
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Flow Direction	2-1 De-energized, 2-3 Energized
Function	3-way	Leak Rate	180 @ 3600 PSI (250 BAR) cm3/min
Maximum Operating Temperature	+400 °F	Maximum Inlet Pressure Rating	3600 psi
Seal Material	Fluorocarbon	Valve Material	All parts steel. All operating parts hardened steel
Mounting Type	Screw in cartridge valve	Override Functionality	N/A
Minimum Operating Temperature	-26 °C	Cavity Size	C10-3
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	50-100 ms
Body Material	N/A	Actuation Type	Electrical
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Operating Pressure	3600 psi
Weight	0.19 kg	Coil Nut Tightening Torque	5-7 lb-ft
Flow Rate	8 Gal/min	Operating Temperature	-26 to +204 °C
Configuration	Normally Closed, Selector	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Flow Rate	30 L/min
Coil Type	5/8" Super Coil	Division	Hydraulic Systems Division
Installation Torque	50-56 Nm	Operation Type	Solenoid operated
